Features: • Greater than 400 Mbps data rate• 3.3V power supply operation• Low power dissipation• Fail safe protection for open-circuit conditions• Meets or exceeds the TIA/EIA-644-A LVDS standard• 16-pin TSSOP package saves space• Flow-through pinout simpl...
FIN1049: Features: • Greater than 400 Mbps data rate• 3.3V power supply operation• Low power dissipation• Fail safe protection for open-circuit conditions• Meets or exceeds the ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
---|---|---|---|---|---|---|---|---|
FIN1049MTCX | Full Production | RoHS Compliant | $1.13 | TSSOP | 16 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: FIN1049 |
* Fairchild 1,000 piece Budgetary Pricing |
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FIN1049 is available. Click here for more information . |

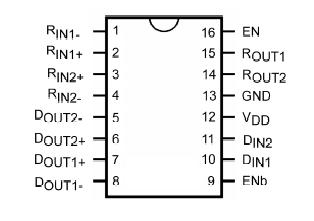

This dual driver-receiver of FIN1049 is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The driver accepts LVTTL inputs and translates them to LVDS outputs. The receiver accepts LVDS inputs and translates them to LVTTL outputs. The LVDS levels have a typical differential output swing of 350mV which provides for low EMI at ultra-low power dissipation even at high frequencies. The FIN1049 can accept LVPECL inputs for translating from LVPECL to LVDS. The En and Enb inputs are ANDed together to enable/disable the outputs. The enables are common to all four outputs. A single-line driver and single-line receiver function is also available in the FIN1049.
