FDT55AN06LA0

MOSFET 60V N-Channel PowerTrench

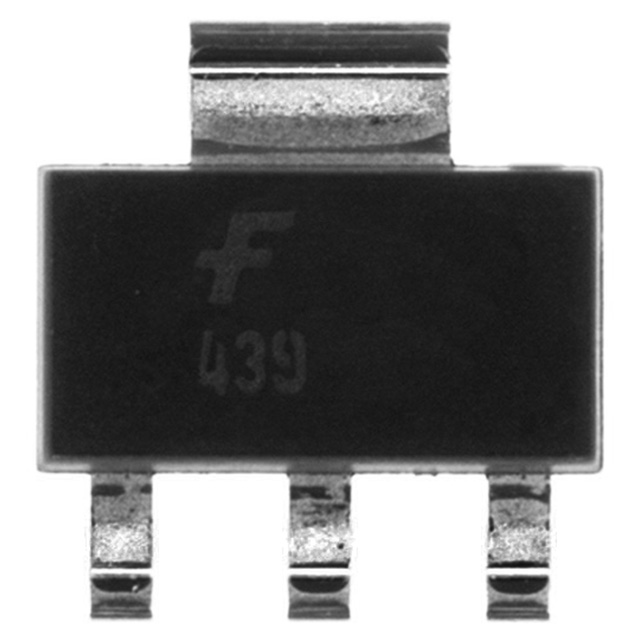

product image

FDT55AN06LA0 Picture
SeekIC No. : 00160026 Detail

FDT55AN06LA0: MOSFET 60V N-Channel PowerTrench

floor Price/Ceiling Price

Part Number:
FDT55AN06LA0
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 60 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 12.1 A
Resistance Drain-Source RDS (on) : 0.046 Ohms Configuration : Single Dual Drain
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOT-223 Packaging : Reel

Description

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 60 V
Package / Case : SOT-223
Configuration : Single Dual Drain
Continuous Drain Current : 12.1 A
Resistance Drain-Source RDS (on) : 0.046 Ohms


Specifications



ProductProduct statusEco StatusPricing*Package typeLeadsPacking methodPackage DrawingPackage Marking Convention**
FDT55AN06LA0Full ProductionGreen$0.68SOT-2234TAPE REEL N/ALine 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&3 (3-Digit Date Code)
&K Line 2: 55AN06L
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDT55AN06LA0 is available. Click here for more information .



Parameters:

Technical/Catalog InformationFDT55AN06LA0
VendorFairchild Semiconductor (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25° C12.1A
Rds On (Max) @ Id, Vgs46 mOhm @ 11A, 10V
Input Capacitance (Ciss) @ Vds 1130pF @ 25V
Power - Max8.9W
PackagingDigi-Reel?
Gate Charge (Qg) @ Vgs10nC @ 10V
Package / CaseSOT-223, SC-73, TO-261 (3 Leads + Tab)
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDT55AN06LA0
FDT55AN06LA0
FDT55AN06LA0DKR ND
FDT55AN06LA0DKRND
FDT55AN06LA0DKR
