Gate-Source Breakdown Voltage
: +/- 20 V
Mounting Style
: SMD/SMT
Packaging
: Reel
Maximum Operating Temperature
: + 150 C
Transistor Polarity
: N and P-Channel
Configuration
: Dual Dual Drain
Package / Case
: SOIC-8 Narrow
Drain-Source Breakdown Voltage
: +/- 30 V
Continuous Drain Current
: 7 A, - 5 A
Resistance Drain-Source RDS (on)
: 19 mOhms, 42 mOhms
Features: • Q1: N-Channel
7.0A, 30V RDS(on) = 0.028 @ VGS = 10V
RDS(on) = 0.040 @ VGS = 4.5V
• Q2: P-Channel
-5A, -30V RDS(on) = 0.052 @ VGS = -10V
RDS(on) = 0.080 @ VGS = -4.5V
• Fast switching speed

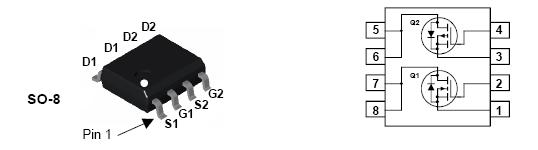

• High power and handling capability in a widely used surface mount packagePinout
Specifications
| Symbol |
Parameter |
Q1 |
Q2 |
Units |
| VDSS |
Drain-Source Voltage |
30 |
30 |
V |
| VGSS |
Gate-Source Voltage |
±20 |
±20 |
ID
|
Drain Current
|
Continuous (Note 1a)
Pulsed
|
7 |
-5 |
A |
|
20 |
-20 |
PD
|
Power Dissipation for Dual Operation |
2 |
W |
Power Dissipation for Single Operation
|
(Note 1a)
(Note 1b)
(Note 1c) |
1.6 |
|
1 |
|
0.9 |
| TJ, TSTG |
Operating and Storage Junction Temperature Range |
55 to +150 |
°C |
DescriptionThese FDS8958A dual N- and P-Channel enhancement mode power field effect transistors are produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize on-state ressitance and yet maintain superior switching performance.These devices FDS8958A are well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required.
Parameters: | Technical/Catalog Information | FDS8958A |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N and P-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 7A, 5A |
| Rds On (Max) @ Id, Vgs | 28 mOhm @ 7A, 10V |
| Input Capacitance (Ciss) @ Vds | 690pF @ 10V |
| Power - Max | 2W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 23nC @ 10V |
| Package / Case | SO-8 |
| FET Feature | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDS8958A
FDS8958A
FDS8958ADKR ND
FDS8958ADKRND
FDS8958ADKR
|
