FDS8926A

Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Packaging : Reel
Drain-Source Breakdown Voltage : 30 V
Maximum Operating Temperature : + 150 C
Gate-Source Breakdown Voltage : +/- 8 V
Configuration : Dual Dual Drain
Continuous Drain Current : 5.5 A
Package / Case : SOIC-8 Narrow
Resistance Drain-Source RDS (on) : 0.03 Ohms


Features:

5.5 A, 30 V. R_DS(ON) = 0.030 @ V_GS = 4.5 V
                      R_DS(ON) = 0.038 @ V_GS = 2.5 V.
High density cell design for extremely low R_DS(ON).
Combines low gate threshold (fully enhanced at 2.5V) with high breakdown voltage of 30 V.
High power and current handling capability in a widely used surface mount package.
Dual MOSFET in surface mount package.

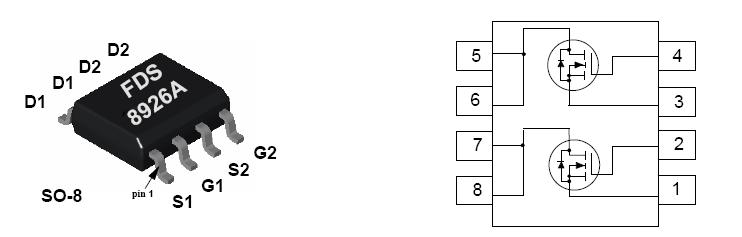

Pinout




Specifications

Symbol	Parameter		Ratings	Units
VDSS	Drain-Source Voltage		30	V
VGSS	Gate-Source Voltage		±8
ID	Drain Current	Continuous (Note 1a) Pulsed	5.5	A
			20
PD	Power Dissipation for Dual Operation		2	W
	Power Dissipation for Single Operation	(Note 1a) (Note 1b) (Note 1c)	1.6
			1
			0.9
TJ, TSTG	Operating and Storage Junction Temperature Range		55 to +150	°C

Description

SO-8 N-Channel enhancement mode power field effect transistors FDS8926A are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to provide superior switching performance and minimize on-state resistance. These devices FDS8926A are particularly suited for low voltage applications such as disk drive motor control, battery powered circuits where fast switching, low in-line power loss, and resistance to transients are needed.

Parameters:

Technical/Catalog Information	FDS8926A
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	5.5A
Rds On (Max) @ Id, Vgs	30 mOhm @ 5.5A, 4.5V
Input Capacitance (Ciss) @ Vds	900pF @ 10V
Power - Max	2W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	28nC @ 4.5V
Package / Case	SO-8
FET Feature	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDS8926A FDS8926A FDS8926ACT ND FDS8926ACTND FDS8926ACT
