FDS7760A

MOSFET N-Ch Logic Level

product image

FDS7760A Picture
SeekIC No. : 00161701 Detail

FDS7760A: MOSFET N-Ch Logic Level

floor Price/Ceiling Price

Part Number:
FDS7760A
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 30 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 15 A
Resistance Drain-Source RDS (on) : 4.5 m Ohms Configuration : Single Quad Drain Triple Source
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOIC-8 Narrow Packaging : Reel

Description

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Packaging : Reel
Drain-Source Breakdown Voltage : 30 V
Maximum Operating Temperature : + 150 C
Configuration : Single Quad Drain Triple Source
Continuous Drain Current : 15 A
Package / Case : SOIC-8 Narrow
Resistance Drain-Source RDS (on) : 4.5 m Ohms


Features:

•  15 A, 30 V. RDS(ON)   = 5.5 mΩ @ VGS = 10 V
                      RDS(ON)   = 8 mΩ @ VGS = 4.5 V.
•  Low gate charge (37nC typical)
• Fast switching speed.
•  High performance trench technology for extremely low RDS(ON)
•  High power and current handling capability.



Application

• DC/DC converter
• Load switch
• Motor drives

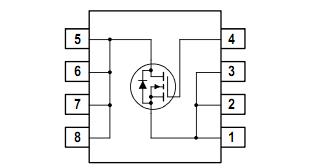

Pinout

  Connection Diagram


Specifications

Symbol Parameter FDS8433A Units
VDSS Drain-Source Voltage -30 V
VGSS Gate-Source Voltage ±20 V
ID Drain Current - Continuous (Note 1a)
- Pulsed
15 A
60
PD Power Dissipation for Single Operation (Note 1a)
(Note 1b)
(Note 1c)
2.5 W
1.2
1
TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C



Description

This FDS7760A N-Channel Logic Level MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize on-state resistance and yet maintain superior switching performance.

These devices FDS7760A are well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required.




Parameters:

Technical/Catalog InformationFDS7760A
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C15A
Rds On (Max) @ Id, Vgs5.5 mOhm @ 15A, 10V
Input Capacitance (Ciss) @ Vds 3514pF @ 15V
Power - Max1W
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs55nC @ 5V
Package / Case8-SOIC
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDS7760A
FDS7760A
