FDS6690

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Packaging : Reel
Drain-Source Breakdown Voltage : 30 V
Maximum Operating Temperature : + 150 C
Configuration : Single Quad Drain Triple Source
Package / Case : SOIC-8 Narrow
Continuous Drain Current : 11 A
Resistance Drain-Source RDS (on) : 0.0125 Ohms


Features:

10 A, 30 V. RDS(ON)= 0.0135 W  @ VGS = 10 V
                  RDS(ON)= 0.0200 W  @ VGS = 4.5 V.
Optimized for use in switching DC/DC converters with
PWM controllers.
Very fast switching .
Low gate charge (Qg typ = 13 nC).

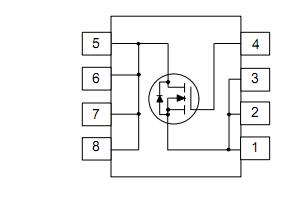

Pinout




Specifications

Symbol	Parameter	Ratings	Units
VDSS	Drain-Source Voltage	30	V
VGSS	Gate-Source Voltage	±20	V
ID	Drain Current - Continuous (Note 1a) - Pulsed	10	A
		50
PD	Power Dissipation for Single Operation (Note 1a) (Note 1b) (Note 1c)	2.5	W
		1.2
		1
TJ, Tstg	Operating and Storage Junction Temperature Range	-55 to +150	°C

Description

This FDS6690 N Channel Logic Level MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.

The MOSFET FDS6690 features faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications.

The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency.
