FDS3912

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Maximum Operating Temperature : + 175 C
Mounting Style : SMD/SMT
Packaging : Reel
Drain-Source Breakdown Voltage : 100 V
Configuration : Dual Dual Drain
Package / Case : SOIC-8 Narrow
Continuous Drain Current : 3 A
Resistance Drain-Source RDS (on) : 0.125 Ohms


Features:

3 A, 100 V. R_DS(ON) = 125 m @ V_GS = 10 V
                    R_DS(ON) = 135 m @ V_GS = 6 V
Fast switching speed
Low gate charge (14 nC typ)
High performance trench technology for extremely low R_DS(ON)
High power and current handling capability

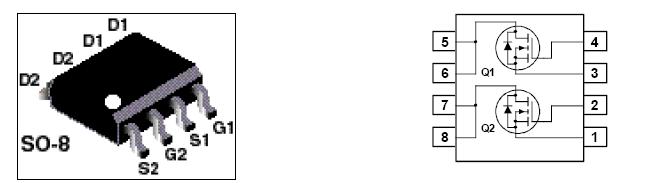

Pinout




Specifications

Symbol	Parameter	Ratings	Units
VDSS	Drain-Source Voltage	100	V
VGSS	Gate-Source Voltage	± 20
ID	Drain Current Continuous (Note 1a)              Pulsed	3	A
		20
PD	Power Dissipation for Dual Operation	2	W
	Power Dissipation for Single Operation (Note 1a)                                            (Note 1b)                                            (Note 1c)	1.6
		1.0
		0.9
TJ, TSTG	Operating and Storage Junction Temperature Range	55 to +150	°C

Description

These FDS3912 N-Channel MOSFETs have been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.These MOSFETs FDS3912 feature faster switching and lower gate charge than other MOSFETs with comparable R _DS(ON) specifications. The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency.

Parameters:

Technical/Catalog Information	FDS3912
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25° C	3A
Rds On (Max) @ Id, Vgs	125 mOhm @ 3A, 10V
Input Capacitance (Ciss) @ Vds	632pF @ 50V
Power - Max	900mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	20nC @ 10V
Package / Case	SO-8
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDS3912 FDS3912
