FDS3680

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Packaging : Reel
Drain-Source Breakdown Voltage : 100 V
Maximum Operating Temperature : + 150 C
Configuration : Single Quad Drain Triple Source
Package / Case : SOIC-8 Narrow
Continuous Drain Current : 5.2 A
Resistance Drain-Source RDS (on) : 0.032 Ohms


Features:

• 5.2 A, 100 V. R_DS(ON) = 0.043 @ V_GS = 10 V
                        R_DS(ON) = 0.048 @ V_GS = 6 V.
• Low gate charge.
• Fast switching speed
• High performance trench technology for extremely low R_DS(ON) .
• High power and current handling capability.

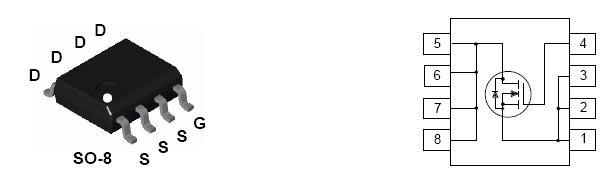

Pinout




Specifications

Symbol	Parameter	Ratings	Units
VDSS	Drain-Source Voltage	100	V
VGSS	Gate-Source Voltage	± 20
ID	Drain Current Continuous (Note 1a)                 Pulsed	5.2	A
		50
PD	Power Dissipation for Single Operation (Note 1a)                                             (Note 1b)                                             (Note 1c)	2.5	W
		1.2
		1.0
TJ, TSTG	Operating and Storage Junction Temperature Range	55 to +150	°C

Description

This FDS3680 N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.These MOSFETs FDS3680 feature faster switching and lower gate charge than other MOSFETs with comparable R _DS(ON) specifications.The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency.

Parameters:

Technical/Catalog Information	FDS3680
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25° C	5.2A
Rds On (Max) @ Id, Vgs	46 mOhm @ 5.2A, 10V
Input Capacitance (Ciss) @ Vds	1735pF @ 50V
Power - Max	1W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	53nC @ 10V
Package / Case	SO-8
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDS3680 FDS3680
