FDQ7244S

MOSFET USE 512-FDQ7238S Notebook Power

product image

FDQ7244S Picture
See larger image
SeekIC No. : 00165192 Detail

FDQ7244S: MOSFET USE 512-FDQ7238S Notebook Power

FDQ7244S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FDQ7244S
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 30 V
Gate-Source Breakdown Voltage : +/- 16 V Continuous Drain Current : 14 A
Resistance Drain-Source RDS (on) : 0.0095 Ohms Configuration : Dual
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SO-14 Packaging : Reel

Description

Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Packaging : Reel
Drain-Source Breakdown Voltage : 30 V
Maximum Operating Temperature : + 150 C
Configuration : Dual
Gate-Source Breakdown Voltage : +/- 16 V
Continuous Drain Current : 14 A
Resistance Drain-Source RDS (on) : 0.0095 Ohms
Package / Case : SO-14


Features:

· Q2: 14 A, 30V. RDS(on) = 9.5 mW @ VGS = 10V
                            RDS(on) = 10.5 mW @ VGS = 4.5V
· Q1: 11 A, 30V. RDS(on) = 14.5 mW @ VGS = 10V
                            RDS(on) = 16 mW @ VGS = 4.5V


Pinout

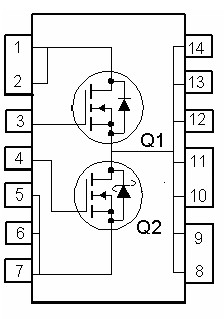

Connection Diagram


Specifications

Symbol
Parameter
Q2
Q1
Units
VDSS
 Drain-Source Voltage
30
30
V
VGSS
 Gate-Source Voltage
±16
±16
V
ID
 Drain Current Continuous (Note 1a)
Pulsed
14
11
A
50
50
PD
 Power Dissipation for Single Operation (Note 1a & 1b)
(Note 1c & 1d)
2.4
1.8
W
1.3

1.1

TJ,TSTG
 Operating and Storage Junction Temperature Range
55to+150
°C



Description

The FDQ7244S is designed to replace two single SO-8 MOSFETs in DC to DC power supplies. The high-side switch (Q1) is designed with specific emphasis on reducing switching losses while the low-side switch (Q2) is optimized to reduce conduction losses using  Fairchild's SyncFET TM technology.
