FDG901D

Switching Converters, Regulators & Controllers Control Driver IC P-Ch Slew Rate

product image

FDG901D Picture
See larger image
SeekIC No. : 00587727 Detail

FDG901D: Switching Converters, Regulators & Controllers Control Driver IC P-Ch Slew Rate

FDG901D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FDG901D
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Operating Temperature Range : - 40 C to + 125 C Mounting Style : SMD/SMT
Package / Case : SC-70-5 Packaging : Reel

Description

Output Voltage :
Output Current :
Output Power :
Input Voltage :
Switching Frequency :
Mounting Style : SMD/SMT
Packaging : Reel
Operating Temperature Range : - 40 C to + 125 C
Package / Case : SC-70-5


Features:

• Three Programmable slew rates
• Reduces inrush current
• Minimizes EMI
• Normal turn-off speed
• Low-Power CMOS operates over wide voltage range
• Compact industry standard SC70-5 surface mount package




Application

• Power management
• Battery Load switch

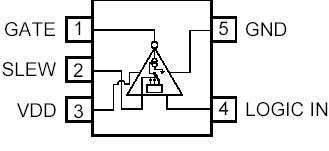

Pinout






Specifications

Symbol
Parameter
Ratings
Units
VDD
VIN
PD
TJ, TSTG		 Supply Voltage
DC Input Voltage (Logic Inputs)
Power Dissipation for Single Operation @ 85°C
Operating and Storage Junction Temperature Range
-0.5 to 10
-0.7 to 6
150
-65 to +150
V
V
mW
°C





Description

The FDG901D is specifically designed to control the turn on of a P-Channel MOSFET in order to limit the inrush current in battery switching applications with high capacitance loads. During turn-on the FDG901D drives the MOSFET's gate low with a regulated current source, thereby controlling the MOSFET's turn on. For turn-off, the IC pulls the MOSFET gate up quickly, for efficient turn off.






Parameters:

Technical/Catalog InformationFDG901D
VendorFairchild Semiconductor (VA)
CategoryIntegrated Circuits (ICs)
Number of Drivers/Receivers1/0
TypeDriver
Voltage - Supply2.7 V ~ 6 V
Package / CaseSC-70-5
PackagingCut Tape (CT)
Protocol-
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDG901D
FDG901D
FDG901DCT ND
FDG901DCTND
FDG901DCT
