FDC658AP

MOSFET -30VSgl P-Chl LogLv PwrTrch MOSFET

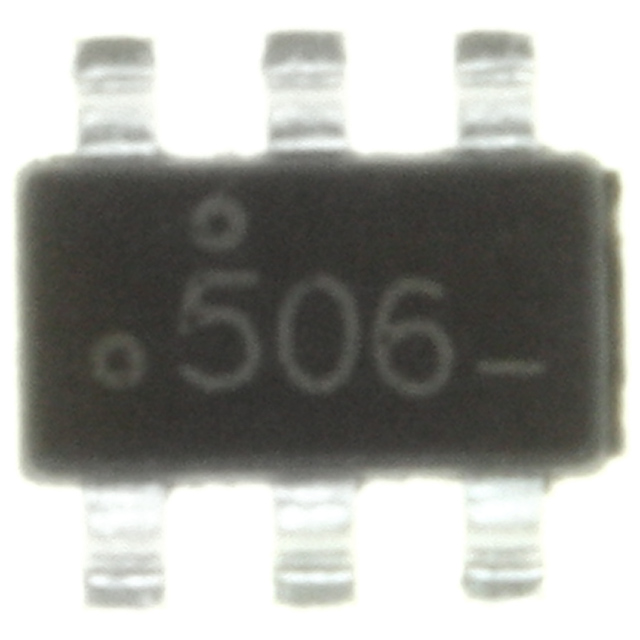

product image

FDC658AP Picture
SeekIC No. : 00147526 Detail

FDC658AP: MOSFET -30VSgl P-Chl LogLv PwrTrch MOSFET

floor Price/Ceiling Price

US $ .14~.32 / Piece | Get Latest Price
Part Number:
FDC658AP
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.32
  • $.25
  • $.17
  • $.14
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/30

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : P-Channel Drain-Source Breakdown Voltage : - 30 V
Gate-Source Breakdown Voltage : +/- 25 V Continuous Drain Current : 4 A
Resistance Drain-Source RDS (on) : 44 mOhms Configuration : Single Quad Drain
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SSOT-6 Packaging : Reel

Description

Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : P-Channel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : - 30 V
Continuous Drain Current : 4 A
Configuration : Single Quad Drain
Package / Case : SSOT-6
Gate-Source Breakdown Voltage : +/- 25 V
Resistance Drain-Source RDS (on) : 44 mOhms


Parameters:

Technical/Catalog InformationFDC658AP
VendorFairchild Optoelectronics Group
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityP-Channel
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C4A
Rds On (Max) @ Id, Vgs50 mOhm @ 4A, 10V
Input Capacitance (Ciss) @ Vds 470pF @ 15V
Power - Max800mW
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs8.1nC @ 5V
Package / CaseSuperSOT-6
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FDC658AP
FDC658AP
FDC658APTR ND
FDC658APTRND
FDC658APTR
