Features: • 5 Volt Operation• PC98/99 and ACPI 1.0 Compliant• Battery Back-up for Wake-Events• ISA Host Interface• ISA Plug-and-Play Compatible Register Set - 12 IRQ Options - 15 Serial IRQ Options - 16 Bit Address Qualification - Four DMA Options - 12mA AT Bus Driver...

See larger image

SeekIC No. : 004341049 Detail

FDC37B72x: Features: • 5 Volt Operation• PC98/99 and ACPI 1.0 Compliant• Battery Back-up for Wake-Events• ISA Host Interface• ISA Plug-and-Play Compatible Register Set - 12 IRQ Op...

FDC37B72x Data Sheet

Get Latest Price

Part Number:: FDC37B72x
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

• 5 Volt Operation
• PC98/99 and ACPI 1.0 Compliant
• Battery Back-up for Wake-Events
• ISA Host Interface
• ISA Plug-and-Play Compatible Register Set
   - 12 IRQ Options
   - 15 Serial IRQ Options
   - 16 Bit Address Qualification
   - Four DMA Options
   - 12mA AT Bus Drivers
• BIOS Buffer
• 20 GPI/O Pins
• 32 kHz Standby Clock Output
• Soft Power Management
• ACPI/PME Support
• SCI/SMI Support
   - Watchdog timer
   - Power Button Override Event
   - Either Edge Triggered Interrupts
• Intelligent Auto Power Management
   - Shadowed Write-only Registers
   - Programmable Wake-up Event Interface
• 8042 Keyboard Controller
   - 2K Program ROM
   - 256 Bytes Data RAM
   - Asynchronous Access to Two Data Registers and One Status Register
   - Supports Interrupt and Polling Access
   - 8 Bit Timer/Counter
   - Port 92 Support
   - Fast Gate A20 and Hardware Keyboard Reset
• 2.88MB Super I/O Floppy Disk Controller
   - Relocatable to 480 Different Addresses
   - Licensed CMOS 765B Floppy Disk Controller
   - Advanced Digital Data Separator
   - SMSC's Proprietary 82077AA Compatible Core
   - Sophisticated Power Control Circuitry (PCC) Including Multiple Powerdown Modes for Reduced Power Consumption
   - Supports Two Floppy Drives Directly
   - Software Write Protect
   - FDC on Parallel Port
   - Low Power CMOS Design
   - Supports Vertical Recording Format
   - 16 Byte Data FIFO
   - 100% IBM^® Compatibility
   - Detects All Overrun and Underrun Conditions
   - 24mA Drivers and Schmitt Trigger Inputs
• Enhanced FDC Digital Data Separator
   - Low Cost Implementation
   - No Filter Components Required
   - 2 Mbps, 1 Mbps, 500 Kbps, 300 Kbps,250 Kbps Data Rates
   - Programmable Precompensation Modes
• Serial Ports
   - Relocatable to 480 Different Addresses
   - Two High Speed NS16C550A Compatible UARTs with Send/Receive 16 Byte FIFOs
   - Programmable Baud Rate Generator
   - Modem Control Circuitry Including 230K and 460K Baud
   - IrDA 1.0, HP-SIR, ASK-IR Support
   - Ring Wake Filter
• Multi-Mode™ Parallel Port with ChiProtect™
   - Relocatable to 480 Different Addresses
   - Standard Mode
   - IBM PC/XT®, PC/AT^®, and PS/2™ Compatible Bidirectional ParallelPort
   - Enhanced Mode
   - Enhanced Parallel Port (EPP) Compatible EPP 1.7 and EPP 1.9 (IEEE 1284 Compliant)
   - High Speed Mode
   - Microsoft and Hewlett Packard Extended Capabilities Port (ECP) Compatible (IEEE 1284 Compliant)
   - Incorporates ChiProtect™ Circuitry for Protection Against Damage Due to Printer Power-On
   - 14 mA Output Drivers
• 128 Pin QFP Package

Pinout

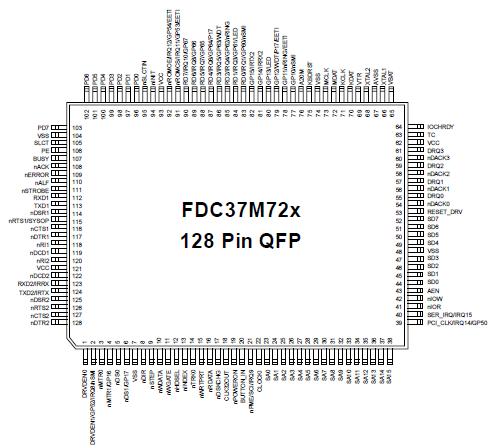

Connection Diagram

Specifications

Operating Temperature Range.....................................................................................................0 to +70
Storage Temperature Range ...................................................................................................-55 to +150
Lead Temperature Range (soldering, 10 seconds) ...............................................................................+325
Positive Voltage on any pin, with respect to Ground ..........................................................................Vcc+0.3V
Negative Voltage on any pin, with respect to Ground.............................................................................. -0.3V
Maximum Vcc.............................................................................................................................................. +7V

*Stresses above those listed above could cause permanent damage to the device. This is a stress rating only and functional operation of the device at any other condition above those indicated in the operation sections of this specification is not implied.

Note: When powering this device from laboratory or system power supplies, it is important that the Absolute Maximum Ratings not be exceeded or device failure can result. Some power supplies exhibit voltage spikes on their outputs when the AC power is switched on or off. In addition, voltage transients on the AC power line may appear on the DC output. If this possibility exists, it is suggested that a clamp circuit be used.
