Features: • Common features: Low input and output leakage 1A (max.) CMOS power levels True TTL input and output compatibility VOH = 3.3V (typ.) VOL = 0.3V (typ.) Meets or exceeds JEDEC standard 18 specifications Product available in Radiation Tolerant and Radiation Enhanced versions Milita...
FCT2543T: Features: • Common features: Low input and output leakage 1A (max.) CMOS power levels True TTL input and output compatibility VOH = 3.3V (typ.) VOL = 0.3V (typ.) Meets or exceeds JEDEC stand...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Rating |
Commercial |
Military |
Unit |
VTERM(2) | Terminal Voltage with Respect to GND |
0.5 to +7.0 |
0.5 to +7.0 |
V |
VTERM(3) | Terminal Voltage with Respect to GND |
0.5 to VCC +0.5 |
0.5 to VCC +0.5 |
V |
TA | Operating Temperature |
0 to +70 |
55 to +125 |
°C |
TBIAS | Temperature Under Bias |
55 to +125 |
65 to +135 |
°C |
TSTG | Storage Temperature |
55 to +125 |
65 to +150 |
°C |
PT | Power Dissipation |
0.5 |
0.5 |
W |
IOUT | DC Output Current |
60 to +120 |
60 to +120 |
mA |

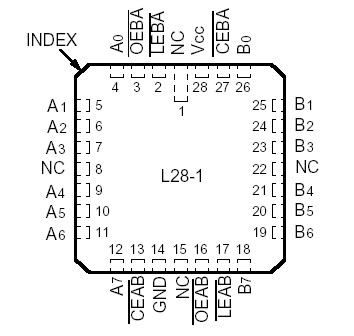

The FCT543T/FCT2543T is a non-inverting octal transceiver built using an advanced dual metal CMOS technology. This device contains two sets of eight D-type latches with separate input and output controls for each set. For data flow from A to B, for example, the A-to-B Enable (CEAB) input must be LOW in order to enter data from A0A7 or to take data from B0B7, as indicated in the Function Table. With CEAB LOW, LOW signal on the A-to-B Latch Enable (LEAB) input makes the A-to-B latches transparent; a subsequent LOW-to-HIGH transition of the LEAB signal puts the A latches in the storage mode and their outputs no longer change with the A inputs. With CEAB and OEAB both LOW, the 3-state B output buffers are active and reflect the data present at the output of the A latches. Control of data from B to A is similar, but uses the CEBA, LEBA and OEBA inputs.
The FCT2543T has balanced output drive with current limiting resistors. This offers low ground bounce, minimal undershoot and controlled output fall times-reducing the need for external series terminating resistors. FCT2xxxT parts are plug-in replacements for FCTxxxT parts.
