FCT162344AT

Features:

* 0.5 MICRON CMOS Technology
* Ideal for address line driving and clock distribution
* 8 banks with 1:4 fanout and 3-state
* Typical tSK(o) (Output Skew) < 500ps
* Balanced Output Drivers: ±24mA (commercial),

                                            ±16mA (military)
* Reduced system switching noise
* ESD > 2000V per MIL-STD-883, Method 3015;

> 200V using machine model (C = 200pF, R = 0)
* Packages include 25 mil pitch SSOP, 19.6 mil pitch

TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack
* Extended commercial range of -40°C to +85°C
*VCC = 5V ±10%
* Low input and output leakage 1A (max.)

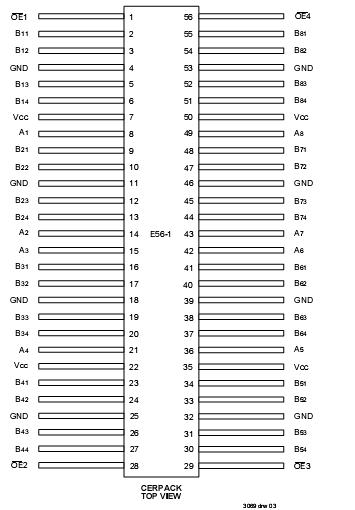

Pinout

Specifications

Symbol	Description	Max.	Unit
VTERM(2)	Terminal Voltage with Respect to GND	0.5 to +7.0	V
VTERM(3)	Terminal Voltage with Respect to GND	0.5 to VCC +0.5	V
TSTG	Storage Temperature	65 to +150	°C
IOUT	DC Output Current	60 to +120	mA

Description

The FCT162344AT/CT/ET is a 1:4 address line driver built using advanced dual metal CMOS technology.  This high-
speed, low power device provides the ability to fanout to memory arrays.  Eight banks, each with a fanout of 4, and 3-state control provide efficient address distribution.  One or more banks may be used for clock distribution.
The FCT162344AT/CT/ET has balanced output drive with current limiting resistors.  This offers low ground bounce,
minimal undershoot and controlled output fall times reducing the need for external series terminating resistors.
A large number of power and ground pins and TTL output swings also ensure reduced noise levels.  All inputs are
designed with hysteresis for improved noise margins.
