FCN-214J080-G_0

Features: • 1.27 mm (0.050 in.) pitch contact arrangement in two rows enables high-density mounting.• Connectors are available with 30 to 120 contacts.• Terminals are spaced in a four-row staggered arrangement (2.54 mm (0.100 in.) ´ 1.905 mm (0.075 in.)) for easy PC board d...

product image

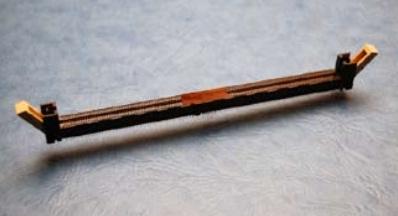

FCN-214J080-G_0 Picture
See larger image
SeekIC No. : 004340898 Detail

FCN-214J080-G_0: Features: • 1.27 mm (0.050 in.) pitch contact arrangement in two rows enables high-density mounting.• Connectors are available with 30 to 120 contacts.• Terminals are spaced in a f...

FCN-214J080-G_0 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FCN-214J080-G_0
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1.27 mm (0.050 in.) pitch contact arrangement in two rows enables high-density mounting.
• Connectors are available with 30 to 120 contacts.
• Terminals are spaced in a four-row staggered arrangement (2.54 mm (0.100 in.) ´ 1.905 mm (0.075 in.)) for easy PC board design.
• Sockets are available for board mounting and for flat cables. [See the description of the FCN-210 series (for boardto- cable connection).]
• Insulation is UL-approved (94V-0) and is washable.




Specifications

Item Specification
Operating temperature range
Current rating
Voltage rating
Contact resistance
Insulation resistance
Dielectric withstand
voltage
Insertion force
Withdrawal force
Applicable PC board
(standard)		 55°C to +105°C
DC 2 A
AC 250 V
35 mW max. (DC 6 V, 0.1 V)
1000 MW min. (DC 500 V)
500 VAC for 1 minute
4 kg max. (10 pins)
250 g min. (10 pins)
Thickness: 0.8 to 1.6 mm
(0.031 to 0.063 in.)
