FCBS0650

Configuration :
Collector- Emitter Voltage VCEO Max :
Collector-Emitter Saturation Voltage :
Maximum Gate Emitter Voltage :
Continuous Collector Current at 25 C :
Gate-Emitter Leakage Current :
Power Dissipation :
Maximum Operating Temperature :
Packaging : Tube
Package / Case : SPM27-BA


Features:

* UL Certified No.E209204(SPM27-BA package)
* 500V-6A 3-phase MOSFET inverter bridge including control
   ICs for gate driving and protection
* Divided negative dc-link terminals for inverter current sensing
   applications
* Single-grounded power supply due to built-in HVIC
* Isolation rating of 2500Vrms/min.
* Very low leakage current due to using ceramic substrate


Application

* AC 200V three-phase inverter drive for small power ac motor drives
* Home appliances applications like refrigerator.

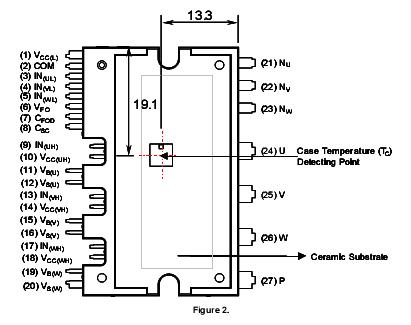

Pinout




Specifications

Symbol	Parameter	Conditions	Rating	Units
VPN	Supply Voltage	Applied between P- NU,NV,NW	400	V
VPN(Surge)	Supply Voltage (Surge)	Applied between P- NU,NV,NW	450	V
VCES	Collector-emitter Voltage		500	V
± IC	Each IGBT Collector Current	TC = 25°C,Peak Sinusoidal Current	6	A
± IDP	Each IGBT Collector Current (Peak)	TC = 25°C, Under 1ms Pulse Width	8	A
PC	Collector Dissipation	TC = 25°C per One IGBT	26.3	W
TJ	Operating Junction Temperature	(Note 1)	-20~125	°C

Description

    FCBS0650 is an advanced smart power module (SPM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low-power inverter-driven application like refrigerator. FCBS0650 combines opti- mized circuit protection and drive matched to low-loss MOS- FETs. System reliability is further enhanced by the integrated under-voltage lock-out and short-circuit protection. The high speed built-in HVIC FCBS0650 provides opto-coupler-less single-supply MOSFET gate driving capability that further reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided nega- tive dc terminals.

Parameters:

Technical/Catalog Information	FCBS0650
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Applications	AC Motor Driver, 3 Phase
Number of Outputs	1
Voltage - Supply	13.5 V ~ 16.5 V
Voltage - Load	300 V ~ 400 V
Current - Output	6A
Operating Temperature	-20°C ~ 100°C
Package / Case	SPM27BA
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FCBS0650 FCBS0650
