FAR-F1DA-6M3120-G201

Features:

• Wide frequency range 1.5 to 100MHz
• Wide fractional bandwidth (%): 0.1 to 2.5
• Low insertion loss: 6dB or less
• Excellent temperature characteristics: 1.5 to 35MHz: ±400ppm or less (0 to 60°C)
                                                                36 to 100MHz: 30ppm/°C (0 to 60°C)
• Small frequency deviation DfO < ±500ppm eliminating the need for adjustment
• Highly reliable hermetically sealed package
• Compatible with small 14-pin DIP IC

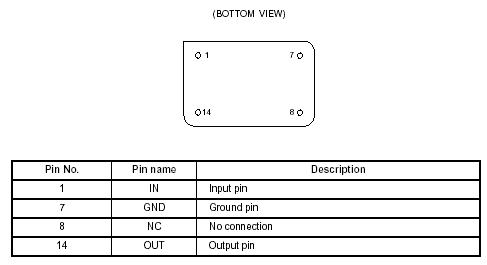

Pinout




Specifications

Item	Symbol	Value	Unit
Operating temperature	Ta	20 to 80	°C
Storage temperature	Tstg	40 to 80	°C
Insulation resistance	IR	100 (100V DC)	MW
Frequency range		1.5 to 100	MHz

Description

The F1, F2 and F3 Series were developed as timing extraction filters for primary, secondary, and tertiary digital
communication devices.

This new all-solid-state bandpass filter (BPF) F1, F2 and F3 Series uses a piezoelectric with a large electromechanical coefficient
(lithium tantalate: LiTaO3). The filter has a wide bandwidth, and is very stable.
