Product Details

Description

Features:

• Protections
- Human body protection with a simple switch
- Over current protection with an integrator
- Over voltage protection
- Load dump protection
- Reverse battery voltage protection
• Low off-state quiescent current (150A)
• Adjustable output control time after car-key turn-off
• Four selectable operating modes
• Thermal shutdown (TSD)
• Under voltage lockout

Application

• Power Window
• Sun Roof

Pinout

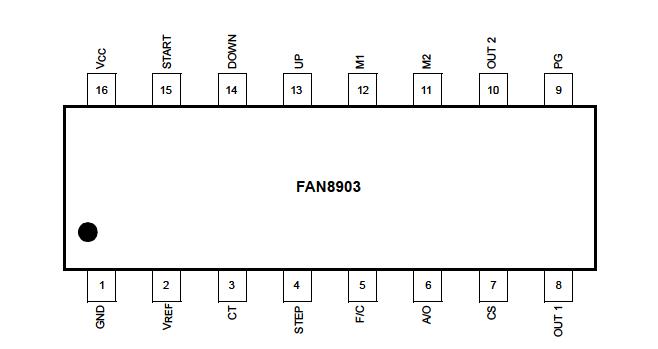

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Supply voltage 1	V_CC1	17	V
Supply voltage 2: reverse bias	V_CC2	−0.7	V
Output current	I_O	400	mA
Power dissipation	P_D	1.0	W
Operating ambient temperature	T_OPR	−40 ~ +90	°C
Storage temperature	T_STG	−60 ~ +150	°C

Description

The FAN8903 is a monolithic integrated circuit, suitable for a window motor control and sun roof motor control in automotive systems.
