FAN8902

Motor / Motion / Ignition Controllers & Drivers Fan Motor Controller DC

product image

FAN8902 Picture
See larger image
SeekIC No. : 00534276 Detail

FAN8902: Motor / Motion / Ignition Controllers & Drivers Fan Motor Controller DC

FAN8902 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8902
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Fan / Motor Controllers / Drivers Type : Fan Motor Controller
Operating Supply Voltage : 32 V Supply Current : 8 mA
Mounting Style : Through Hole Package / Case : DIP-14
Packaging : Tube

Description

Product : Fan / Motor Controllers / Drivers
Packaging : Tube
Mounting Style : Through Hole
Supply Current : 8 mA
Operating Supply Voltage : 32 V
Type : Fan Motor Controller
Package / Case : DIP-14


Features:

• Built-in PWM Current Control Circuit
• Built-in 5V Regulator
• Low Supply Current
• Stalled Motor Current Limitation
• Built-in Over Voltage Protection (OVP)
• Built-in Over Current Protection (OCP)
• Built-in Load Dump Protection
• Built-in Thermal Shutdown (TSD) Circuit
• Built-in Under Voltage Lockout (UVLO) Circuit


Application

• DC for Motor Control for Automotive


Pinout

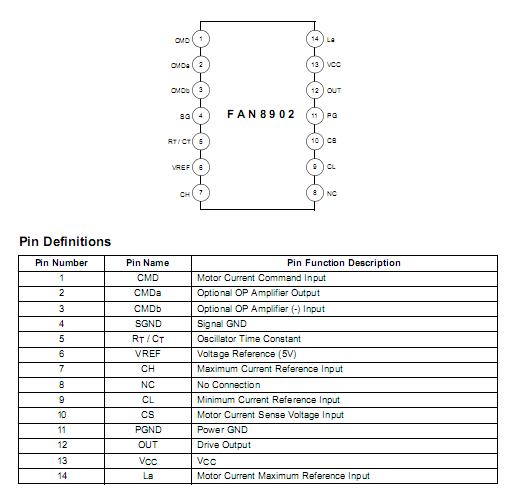

Connection Diagram


Specifications

Parameter Symbol Value Unit
Supply Voltage VCC 32 V
CMD Input Voltage VCMD 6 W
Peak Output Current IOPK ±0.8 A
Power Dissipation PD 1 W



Description

The FAN8902 is a monolithic integrated circuit, designed for the PWM control of a DC fan motor current in an   automotive systems. It allows the fan motor speed to be  controlled linearly and efficiently.
