FAN8732CG

Features: Common• Built-in thermal shutdown circuit (TSD)• Built-in power save circuit• 4 Independent voltage sources• Corresponds to 3.3V or 5V DSPSpindle• Output PWM mode controlBTL(Sled 2-channels)• Output PWM mode controlBTL(Other 3-channels)• Output L...

product image

FAN8732CG Picture
See larger image
SeekIC No. : 004340540 Detail

FAN8732CG: Features: Common• Built-in thermal shutdown circuit (TSD)• Built-in power save circuit• 4 Independent voltage sources• Corresponds to 3.3V or 5V DSPSpindle• Output PWM ...

FAN8732CG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8732CG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Common
• Built-in thermal shutdown circuit (TSD)
• Built-in power save circuit
• 4 Independent voltage sources
• Corresponds to 3.3V or 5V DSP
Spindle
• Output PWM mode control
BTL(Sled 2-channels)
• Output PWM mode control
BTL(Other 3-channels)
• Output LINEAR mode control


Application

• Compact disk ROM (CD-ROM)
• Compact disk RW (CD-RW)
• Digital video disk ROM (DVD-ROM)
• Digital video disk RAM (DVD-RAM)
• Digital video disk Player (DVDP)
• Other compact disk media


Pinout

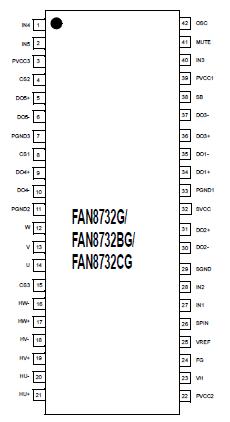

Connection Diagram


Specifications

Parameter Symbol Value Unit
Supply Voltage (Signal block & CH1,2) SVCCmax 7 V
Supply Voltage (Power for CH3) PVCC1max 15 V
Supply Voltage (Spindle driver) PVCC2max 15 V
Supply Voltage (Power for CH4 & 5) PVCC3max 15 V
Power dissipation PD 1.9 / 3.3NOTE W
Operating Temperature Range TOPR -20 ~ +75 °C
Storage temperature Range TSTG -40 ~ +150 °C
Maximum Output Current (Spindle) IOmax1 1.5 A
Maximum Output Current
(Focus, Tracking, Loading)		 IOmax2 0.5 A
Maximum Output Current (Sled) IOmax3   A
Note:
1. Case 1: Single layer PCB with 1 signal plane only. PCB size is 76mm * 114mm * 1.6mm.
2. Case 2: Multi layer PCB with 1 signal, 1 power and 1 ground planes. PCB size is 76mm * 114mm * 1.6mm. Cu planes  size forpower and ground is 74mm * 62mm * 0.035mm.
3. These are experimental datum.
4. Power dissipation reduce rate of the case 1: -15.2mW/°C(Ta>25°C)
5. Power dissipation reduce rate of the case 2: -26.4mW/°C(Ta>25°C)
6. Should not exceed PD and SOA (Safe Operating Area)


Description

The FAN8732G/BG/CG is a monolithic IC suitable for a PWM 3-phase BLDC spindle motor driver, 2-CH PWM motor drivers for sled motor and 3-CH linear drivers which drive the focus actuator, tracking actuator and loading motor of the optical media applications.
