FAN8729: Motor / Motion / Ignition Controllers & Drivers BLDC+4CH BTL

FAN8729 Data Sheet

Get Latest Price

Part Number:: FAN8729
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

FAN8000D evaluate
Motor / Motion / Ignition Controllers & Drivers
FAN8000DTF evaluate
Motor / Motion / Ignition Controllers & Drivers BTL Motor Driver
FAN8001BD evaluate
Motor / Motion / Ignition Controllers & Drivers Motor Driver 4Ch BTL+1Ch DC

Product Details

Quick Details

Type :	Spindle Motor Controller	Operating Supply Voltage :	4.5 V to 13.2 V
Supply Current :	16.5 mA	Mounting Style :	SMD/SMT
Package / Case :	QFPH-48	Packaging :	Tube

Description

Product :
Mounting Style : SMD/SMT
Packaging : Tube
Package / Case : QFPH-48
Operating Supply Voltage : 4.5 V to 13.2 V
Type : Spindle Motor Controller
Supply Current : 16.5 mA

Features:

•Built-in Power Save Circuit
•Built-in Current Limit Circuit
•Built-in Thermal Shutdown Circuit (TSD)
•Built-in TSD Monitor Circuit
•Built-in FG Signal Output Circuit
•Built-in Rotational Direction Detecting Circuit
•Built-in Protection Circuit For Reverse Rotation
•Built-in 4-CH Balanced Transformerless (BTL) Driver
•Built-in BTL MUTE Circuit (CH123 and CH4)
•Corresponds to 3.3V DSP

Pinout

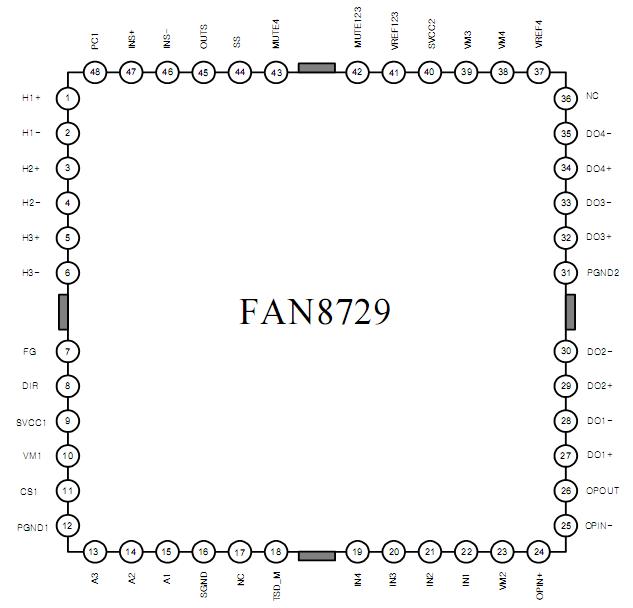

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Supply Voltage (Spindle Signal) Supply Voltage (BTL Signal) Supply Voltage (Spindle Motor) Supply Voltage (BTL Motor) Power Dissipation Operating Temperature Range Storge Temperature Range Maximum Output Current (Spindle Part) Maximum Output Current (BTL Part)	SV_CC1max SV_CC2max V_M1max V_M2,3,4max P_d T_opr T_stg I_OMAXS IOMAXB	7 15 15 15 2.7^note -35 ~ +85 -55 ~ +150 1.3 1	V V V V W A A

Description

The FAN8729 is a monolithic integrated circuit built-in 4Channel BTL motor and spindle motor drivers, which can drive tracking actuator, focus actuator, sled motor, loading motor, 3-phase BLDC motor, and it is applicable to DVD-P/MDP/CAR-MD/CAR-NAVIGATION systems.
