Product Details

Quick Details

Type :	4 Channel Motor Driver	Operating Supply Voltage :	15 V
Supply Current :	1.3 A	Mounting Style :	SMD/SMT
Package / Case :	QFPH-48	Packaging :	Tray

Description

Product :
Mounting Style : SMD/SMT
Packaging : Tray
Type : 4 Channel Motor Driver
Operating Supply Voltage : 15 V
Supply Current : 1.3 A
Package / Case : QFPH-48

Features:

• Built-in Power Save Circuit
• Built-in Current Limit Circuit
• Built-in Thermal Shutdown Circuit (TSD)
• Built-in Hall Bias
• Built-in FG Signal Output Circuit
• Built-in Rotational Direction Detecting Circuit
• Built-in Protection Circuit For Reverse Rotation
• Built-in Short Brake Circuit
• Built-in Normal OP-AMP
• Built-in 4-CH Balanced Transformerless (BTL) Driver
• Built-in BTL MUTE Circuit (CH1-2, CH3 and CH4)
• Corresponds to 3.3V DSP

Application

• Mini Disk Player
• Digital Video Disk Player
• Car Mini Disk Player
• Car Navigation System

Pinout

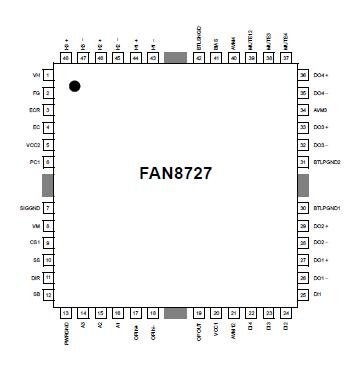

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Supply Voltage (BTL Signal) Supply Voltage (Spindle Signal) Supply Voltage (Motor) Supply Voltage (BTL Motor) Power Dissipation Operating Temperature Range Storge Temperature Range Maximum Output Current (Spindle Part) Maximum Output Current (BTL Part)	V_CC1_max V_CC2_max V_Mmax VMBTL_max P_d T_opr T_stg I_OMAXS I_OMAXB	15 7 15 15 3.0^note -35 ~ +85 -55 ~ +150 1.3 1	V V V V W °C °C A A

Note:
1. When mounted on 70mm × 70 mm × 1.6mm PCB (Phenolic resin material)
2. Power dissipation is reduced 24 mW/°C for using above Ta=25°C
3. Do not exceed Pd and SOA.

Description

The FAN8727 is a monolithic integrated circuit suitable for a 4-CH motor driver which drives the tracking actuator, focus actuator, sled motor, loading motor and 3-phase BLDC spindle motor of the MDP/CAR-MD/CAR-NAVIGATION system.
