FAN8725

Motor / Motion / Ignition Controllers & Drivers BTL Motor Drive IC 3Phase BLDCM+5CH

product image

FAN8725 Picture
See larger image
SeekIC No. : 00534162 Detail

FAN8725: Motor / Motion / Ignition Controllers & Drivers BTL Motor Drive IC 3Phase BLDCM+5CH

FAN8725 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8725
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Spindle Motor Operating Supply Voltage : 15 V
Supply Current : 0.6 A Mounting Style : SMD/SMT
Package / Case : QFPH-48 Packaging : Tray

Description

Product :
Mounting Style : SMD/SMT
Packaging : Tray
Operating Supply Voltage : 15 V
Supply Current : 0.6 A
Package / Case : QFPH-48
Type : Spindle Motor


Features:

Common
• Built-in thermal shutdown circuit (TSD)
• Built-in power save circuit
• 3 Independent voltage source
• Corresponds to 3.3V or 5V DSP
Spindle
• Built-in hall bias
• Built-in FG signal output circuit
• Built-in rotational direction detecting circuit
• Built-in protection circuit for reverse rotation
• Built-in short brake circuit
BTL (5-channel)
• Built-in 5-CH balanced transformerless (BTL) driver
• Built-in Level shift circuit
• Independent voltage sources
• VM2 = CH1,CH2 / VM3 = CH3, CH4 ,CH5


Application

• Compact disk ROM (CD-ROM)
• Compact disk RW (CD-RW)
• Digital video disk ROM (DVD-ROM)
• Digital video disk RAM (DVD-RAM)
• Digital video disk Player (DVDP)
• Other compact disk media


Pinout

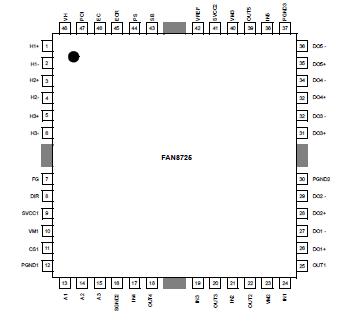

Connection Diagram


Specifications

Parameter Symbol Value Unit
Supply Voltage (Spindle Signal) SVCC1max 7 V
Supply Voltage (BTL Signal) SVCC2max 15 V
Supply Voltage (Spindle Motor) VM1max 15 V
Supply Voltage (BTL CH1/2) VM2max 15 V
Supply Voltage (BTL CH3/4/5) VM3max 15 V
Power dissipation PD 3.0 note W
Operating Temperature Range TOPR -35 ~ +85 °C
Storage temperature Range TSTG -55 ~ +150 °C
Maximum Output Current (Spindle) IOmaxa 1.3 A
Maximum Output Current (BTL) IOmaxb 0.6 A
NOTE:
1. When mounted on 70mm × 70mm × 1.6mm PCB (Phenolic resin material)
2. Power dissipation is reduced 24mW/°C for using above Ta=25°C
3. Do not exceed PD and SOA (Safe Operating Area)


Description

The FAN8725 is a monolithic IC suitable for a 3-phase BLDC spindle motor driver and 5-ch motor drivers which drives the focus actuator, tracking actuator, loading motor, stepping motor driver of the CD-media systems.
