FAN8702

Motor / Motion / Ignition Controllers & Drivers 6CH Motor Drive IC

product image

FAN8702 Picture
See larger image
SeekIC No. : 00534219 Detail

FAN8702: Motor / Motion / Ignition Controllers & Drivers 6CH Motor Drive IC

FAN8702 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8702
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : 6 Channel DSC Motor Driver Operating Supply Voltage : 2.2 V to 6.5 V
Supply Current : 25 mA Mounting Style : SMD/SMT
Package / Case : LQFP-48 Packaging : Tube

Description

Product :
Mounting Style : SMD/SMT
Packaging : Tube
Supply Current : 25 mA
Package / Case : LQFP-48
Type : 6 Channel DSC Motor Driver
Operating Supply Voltage : 2.2 V to 6.5 V


Features:

• Independent 6-Channel H-Bridge.
• Output Current up to 600mA (Each Channel)
• Constant Current Control on CH5 and CH6.
• Constant Voltage Control on CH1,2,3 and CH4.
• Built in Brake Function on CH3,4 and CH6.
• Built in Short Through Protection.
• Low Saturation Voltage.
• Low Voltage operation.
• Built in Reference Voltage.
• Built in Thermal Shut Down.


Application

• DSC
• Mobile Phone Camera

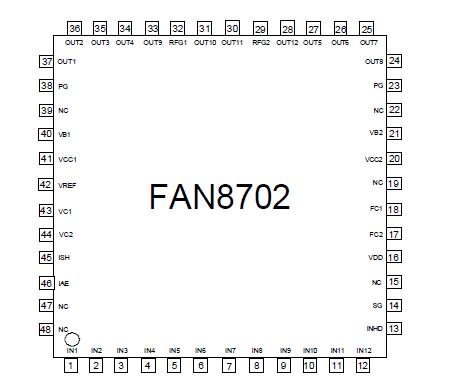

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Maximum Power Supply Voltage VBMAX 10.5 V
Maximum Power Supply Voltage VCCMAX 10.5 V
Maximum Approval Voltage To Input Pin VINMAX 10.5 V
Maximum Approval Voltage To Output Pin VOUTMAX 11.5 V
Maximum Output Current IOUTMAX 600 mA
Maximum Power Dissipation PdMAX 1000 (FAN8702/B) Case1 mW
1200 (FAN8702MP) Case1
2500 (FAN8702MP) Case2
Operating Temperature TOPR -20 ~ +80 °C
Storage Temperature TSTG -55 ~ +150 °C
Note:
  1. Refer: EIA/JESD 51-2 & EIA/JESD 51-3 & EIA/JESD 51-5 & EIA/JESD 51-7
  2. Case 1: Single layer PCB with 1 signal plane only, PCB size 76mm * 114mm * 1.6mm.
  3. Case 2: Multi layer PCB with 1 signal, 1 power and 1 ground planes, PCB size 76mm *114mm *1.6mm, Cu plane sizes for
  power and ground 74mm *74mm *0.035mm, thermal via hole pitch 0.9mm, via hole size 0.3mm, 6 via hole.
  4. Should not exceed PD or ASO value.


Description

The FAN8702 is designed for portable equipment such as DSC and mobile phone camera. It consists of 2 constant current and 4 constant voltage drive blocks suitable for shutter, auto-focus, iris and zoom motor drive.
