Product Details

Quick Details

Type :	Spindle Motor Driver	Operating Supply Voltage :	5 V
Supply Current :	23 mA	Mounting Style :	SMD/SMT
Package / Case :	SSOP-30	Packaging :	Tube

Description

Product :
Mounting Style : SMD/SMT
Packaging : Tube
Operating Supply Voltage : 5 V
Package / Case : SSOP-30
Supply Current : 23 mA
Type : Spindle Motor Driver

Features:

• Three-phase, full-wave, linear BLDC motor driver
• Commutation with only two hall sensors
• Generating index signal without an index hall sensor by special rotor magnetization
• Built-in soft switching drive circuit
• 300/360rpm selectable speed control circuit
• Snubberless output drive
• Chip enable function
• Built-in current limit circuit
• Built-in thermal shutdown circuit
• Low output saturation voltage
• TTL, 5V CMOS compatible digital inputs
• Built-in current-mode control circuit (IPEAK: 1A)

Application

• 3.5-inch floppy disk drive(FDD) spindle motor driver

Pinout

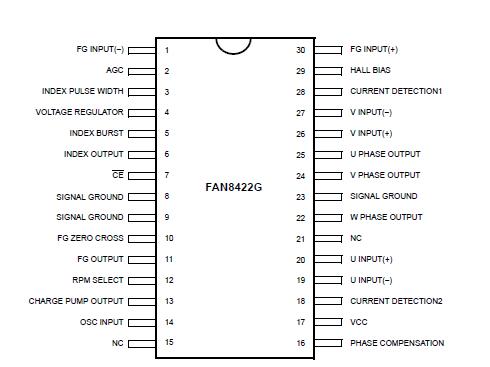

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Maximum Power Supply Voltage	V_CCMAX	7.0	V
Maximum Input Voltage	V_INMAX	0 ~ V_CC	V
Maximum Output Current	I_OMAX	1	A
Continuous Output Current	I_O	0.7	A
Power Dissipation	P_D	1.5	W
Operating Temperature	T_A	0 ~ 75	°C
Junction Temperture	T_J	150	°C
Storage Temperature	T_STG	−55 ~ +125	°C

Description

The FAN8422G is a monolithic integrated circuit suitable for a three-phase spindle motor driver of floppy disk drive systems. It can make index signals without an index hall sensor by special rotor magnetization.
