FAN8400D

Features: •3-Phase BLDC motor driver IC with speed control•Phase Locked Loop (PLL) speed control•Built-in phase locked detector output•Current linear drive scheme•External clock for arbitrary motor speed•Built-in FG amplifier and integrating amplifier•Auto...

product image

FAN8400D Picture
See larger image
SeekIC No. : 004340529 Detail

FAN8400D: Features: •3-Phase BLDC motor driver IC with speed control•Phase Locked Loop (PLL) speed control•Built-in phase locked detector output•Current linear drive scheme•Exter...

FAN8400D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8400D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•3-Phase BLDC motor driver IC with speed control
•Phase Locked Loop (PLL) speed control
•Built-in phase locked detector output
•Current linear drive scheme
•External clock for arbitrary motor speed
•Built-in FG amplifier and integrating amplifier
•Auto Gain Control (AGC) circuit for compensation hall amplifier
•Built-in protection circuits (over-current limit, under voltage limit, thermal shut down)


Pinout

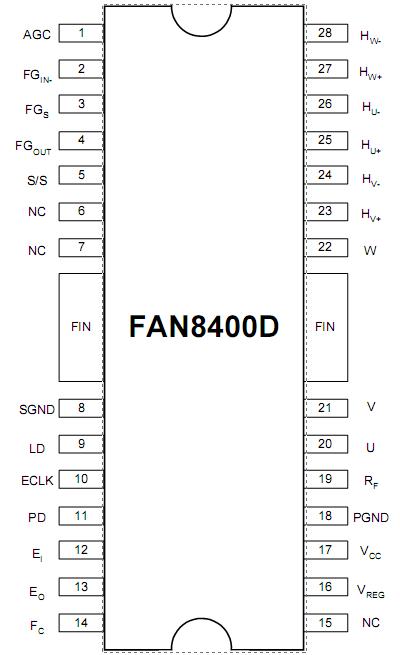

Connection Diagram


Specifications

Parameter       Symbol       Value      Unit      Remark
Maximum supply voltage       VCCMAX        30       V -
Maximum output current       IOMAX        0.6       A -
Power dissipation        Pd        1.7       W -
Operating temperature       TOPR    −20 ~ +80       -
Storage temperature       TSTG    −50 ~ +150       -



Description

The FAN8400D is a monolithic integrated circuit. it is one driver for laser beam printer (LBP) polygon mirror motor, which has single chip implementation of all circuits. For extremely high rotational precision, it employs the phase locked loop (PLL) speed control scheme.
