FAN8200D

Motor / Motion / Ignition Controllers & Drivers Step Motor Driver Low Voltage

product image

FAN8200D Picture
See larger image
SeekIC No. : 00534044 Detail

FAN8200D: Motor / Motion / Ignition Controllers & Drivers Step Motor Driver Low Voltage

FAN8200D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8200D
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Stepper Motor Controllers / Drivers Type : Stepper Motor Controller
Operating Supply Voltage : 2.5 V to 7 V Supply Current : 18 mA
Mounting Style : SMD/SMT Package / Case : SOP-14
Packaging : Tube

Description

Mounting Style : SMD/SMT
Packaging : Tube
Product : Stepper Motor Controllers / Drivers
Type : Stepper Motor Controller
Supply Current : 18 mA
Operating Supply Voltage : 2.5 V to 7 V
Package / Case : SOP-14


Features:

• 3.3V and 5V MPU interface
• Dual H-bridge drivers for bipolar stepping motor drives
• Built-in vertical-PNP power transistors
• Wide supply voltage range (VCC = 2.5V ~ 7.0V)
• Low saturation voltage (0.4V@ 0.4A)
• Built-in chip enable function for each bridge
• Built-in shoot-through current protection
• Built-in thermal shutdown(TSD) function


Application

• General low voltage stepping motor driver
• Floppy disk driver
• Camera stepping motor driver
• PC camera or security equipment motion controller
• Two channel DC motor driver for a digital still camera (DSC)
• MPU interfaced general power driver (buffer)

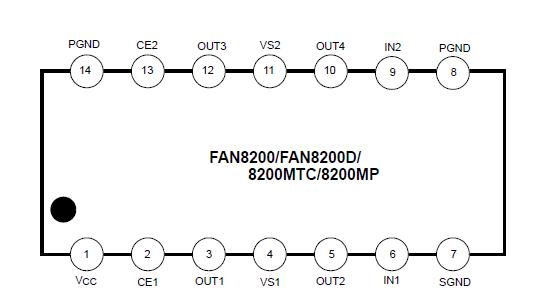

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Supply voltage VCC(MAX) 9.0 V
Power supply voltage VS(MAX) 9.0 V
Output voltage VOUT(MAX) VS + VCF V
Input voltage VIN(MAX) 7.0 V
Peak output current per channel IO(PEAK) 1 A
Continuous output current per channel IO 0.65 (FAN8200)
0.4 (FAN8200D)
0.55 (FAN8200MTC)
0.35 (FAN8200MP)		 A
Power dissipation PDnote 1.0 (FAN8200)
0.6 (FAN8200D)
0.87 (FAN8200MTC)
0.8 (FAN8200MP)		 W
Junction temperture TJ 150 °C
Storage temperature TSTG -40 ~ 125 °C
Operating temperature TA -20 ~ 75(FAN8200)
-20 ~ 75(FAN8200D)
-20 ~ 75(FAN8200MTC)
-30 ~ 80(FAN8200MP)		 °C
Notes:
1. When mounted on 76.2mm * 114mm * 1.57mm PCB (glass epoxy material).
2. Power dissipation reduces 8.0mW/°C for FAN8200, 4.8mW/°C for FAN8200D, 6.9mW/°C for FAN8200MTC and 6.4mW/°C
    FAN8200MP for Ta > 25°C.
3. Should not exceed PD and SOA(Safe Operating Area).


Description

The FAN8200/FAN8200D/FAN8200MTC/FAN8200MP is a monolithic intergrated circuit designed for two-phase stepping motor drive systems. It has dual H-bridge drivers with vertical-PNP power transistors. Each of the bridges has an independant enable pin, therefore it can be used for other applications as well as stepping motor drive systems.
