FAN5660

Features: • Inverts, Doubles or Splits Input Supply Voltage• 90% Typ Conversion Efficiency at 100mA load current• 0.5V Typ Loss at 100mA Load• Low 160A Operating Current• 5.0 Typ Output Resistance for C1 = C2 = 100F• Selectable Oscillator Frequency: 5kHz/50kHz&#...

product image

FAN5660 Picture
See larger image
SeekIC No. : 004340436 Detail

FAN5660: Features: • Inverts, Doubles or Splits Input Supply Voltage• 90% Typ Conversion Efficiency at 100mA load current• 0.5V Typ Loss at 100mA Load• Low 160A Operating Current̶...

FAN5660 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN5660
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Inverts, Doubles or Splits Input Supply Voltage
• 90% Typ Conversion Efficiency at 100mA load current
• 0.5V Typ Loss at 100mA Load
• Low 160A Operating Current
• 5.0 Typ Output Resistance for C1 = C2 = 100F
• Selectable Oscillator Frequency: 5kHz/50kHz
• 8-pin SOIC package.


Application

•Laptop Computers
•Medical Instruments
•Interface Power Supplies
•Hand-Held Instruments
•Operational-Amplifier Power Supplies


Pinout

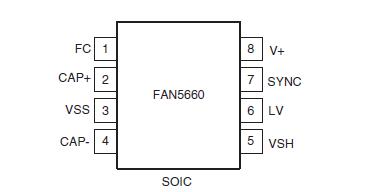

Connection Diagram


Specifications

Parameter Min. Max. Unit
Supply Voltage: V+ to VSS -0.3 6 V
VSH Voltage to VSS -6 0.3 V
Voltage on all other pin to VSS -0.3 (V+) + 0.3 V
VSH and V+ Continuous Output Current (Note 1)   120 mA
Junction Temperature   125 °C
Storage Temperature -40 150 °C
Lead Soldering Temperature, 10 seconds   300 °C
Electrostatic Discharge Protection (Note 2) 4   kV
Power Dissipation (PD) at 85C   300 mW
Notes
1. VSH must not be shorted to VSS or V+, even instantaeously, or device damage may result.
2. Using Mil Std. 883E, method 3015.7(Human Body Model), 400V when using JEDEC method A115-A (Machine Model).


Description

The FAN5660 is a monolithic charge-pump which can invert, double or split a +1.5V to +5.5V input voltage. Using only two identical low-cost capacitors, the charge pump replaces switching regulators, thus eliminating inductors and their associated cost, size, and EMI. The device has a greater than 90% efficiency over most of its load current range and a typical operating current of only 160A. The FAN5660 is ideal for both battery-powered and boardlevel voltage conversion applications.

In order to enable the user optimize capacitor size and quiescent current, the FAN5660 is offered with a frequency control (FC) pin which selects either 5kHz or 50kHz operation.

The Oscillator frequency can also be driven with an external clock. The FAN5660 is available in 8-pin small-outline packages.
