FAN5632

Features: 90% Peak Efficiency Low EMI Low Ripple Selectable Output Voltage 1.2V/1.5V for FAN5631 Efficiency Optimizer Feature for FAN5632 Input Voltage Range: 2.2V to 5.5V Output Current: Up to 250mA ±5% Output Voltage Accuracy 30µA Operating Current ICC < 1µA in Shutdown Mode 1.7M...

product image

FAN5632 Picture
See larger image
SeekIC No. : 004340435 Detail

FAN5632: Features: 90% Peak Efficiency Low EMI Low Ripple Selectable Output Voltage 1.2V/1.5V for FAN5631 Efficiency Optimizer Feature for FAN5632 Input Voltage Range: 2.2V to 5.5V Output Current: Up to 250...

FAN5632 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN5632
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

90% Peak Efficiency
Low EMI
Low Ripple
Selectable Output Voltage 1.2V/1.5V for FAN5631
Efficiency Optimizer Feature for FAN5632
Input Voltage Range: 2.2V to 5.5V
Output Current: Up to 250mA
±5% Output Voltage Accuracy
30µA Operating Current
ICC < 1µA in Shutdown Mode
1.7MHz Operating Frequency
Shutdown Isolates Output from Input
Soft-Start Limits In-Rush Current
Short Circuit and Over Temperature Protection
Minimum External Component Count
Available in a 3x3mm 10-Lead MLP Package




Application

·Cell Phones
·Handheld Computers
·Portable Electronic Equipment
·Core Supply to Next Generation Processors
·Low Voltage DC Bus
·Digital Cameras
·DSP Supplies




Pinout

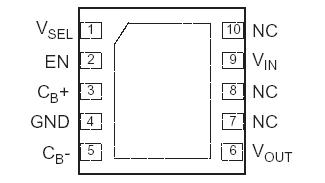

Connection Diagram




Specifications

Parameter Min Max Unit
VIN to GND -0.3 6 V
All other pins to GND -0.3 VIN + 0.3V V
Load Current 0.5 A
Thermal Resistance-Junction to Tab (JC), 3mmx3mm 10-lead MLP (Note 2) 8 °C/W
Lead Soldering Temperature (10 seconds) 260 °C
Storage Temperature -65 150 °C
Junction Temperature -40 150 °C
Electrostatic Discharge (ESD) Protection Level (Note 3) HBM 2.5 kV
CDM 2




Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FAN5632MPX Full Production Green $0.71 MLP 10 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 5632 Line 3: C
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN5632 is available. Click here for more information .





Description

The FAN5631/FAN5632 is an advanced, third-generation switched capacitor step-down DC/DC converter utilizing Fairchild's proprietary ScalarPump™ technology. This innovative architecture utilizes scalar switch re-configuration and fractional switching techniques to produce low output ripple, lower ESR spikes, and improve efficiency over a wide load range.

The FAN5631/FAN5632 produces a fixed regulated output voltage from an input voltage of 2.2V to 5V. Customized output voltages are available in 100mV increments from 1V to 1.8V.

Contact a Fairchild sales representative for customized output voltage options.

In order to maximize efficiency, the FAN5631/5632 achieves regulation by skipping pulses. Depending upon load current, the size of the switches are scaled dynamically; consequently, current spikes and EMI are minimized. An internal soft-start circuitry prevents excessive current drawn from the supply. The device is internally protected against short circuit and over temperature conditions.

The FAN5631 has a dual output voltage feature. When VSEL is high, VOUT is 1.5V and when VSEL is low, VOUT is 1.2V. Other output voltage options are available upon request.

In addition, the FAN5632 has an efficiency optimizer feature that, when enabled, changes the switch mode configuration from 2:1 to 1:1 at the lower threshold of VIN.

The efficiency is then maintained at its peak level over a wider range of input voltages. In addition, VOUT will vary between 1.2V to 1.5V as a result of this efficiency optimization. If the efficiency optimizer is not enabled, VOUT is regulated to 1.5V.

Both the FAN5631 and FAN5632 are available in a 3x3mm 10-lead MLP package.
