FAN5193

The FAN5193 is a synchronous multi-phase DC-DC control-ler IC which provides a highly accurate, programmable out-put voltage for all high-performance processors. Two interleaved synchronous buck regulator phases with built-in current sharing operate 180° out of phase to provide the fast
transient response needed to satisfy high current applications while minimizing external components. The FAN5193 fea-tures remote voltage sensing and Programmable Active Droop for 100nsec converter transient response with mini-mum output capacitance. It has integrated high-current gate
drivers, with adaptive delay gate switching, eliminating the need for external drive devices. The FAN5193 uses a 5-bit D/
A converter to program the output voltage from 1.10V to 1.85V in 25mV steps with an accuracy of 0.5%. The FAN5193 uses a high level of integration to deliver load cur-rents in excess of 50A from a 12V source with minimal external circuitry. The FAN5193 also offers integrated func-
tions including Power Good, Output Enable/Soft Start, under-voltage lockout,over-voltage protection, and adjustable current limiting with independent current sense on each phase. It is available in a

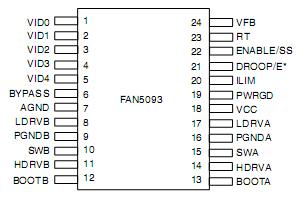

24 pin TSSOP package.
