Product Details

Description



Features:

Selectable 1-, 2-, or 3-phase operation at up to 1MHz per phase
±2% Worst-case differential sensing error over temperature
Externally adjustable 0.8V to 5V output from a 12V supply
Logic-level PWM outputs for interface to external high-power drivers
Active current balancing between all phases
Built-in power-good/crowbar functions
Programmable over current protection with adjustable latch-off delay






Application

Auxiliary supplies
DDR memory supplies
Point-of-load supplies

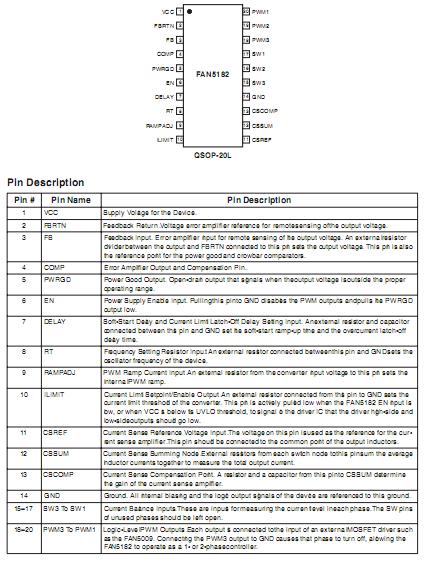

Pinout

Connection Diagram




Specifications

Parameter Min Max Unit
VCC -0.3 +15 V
FBRTN -0.3 +0.3 V
EN, DELAY, ILIMIT, RT, PWM1-PWM3, COMP -0.3 5.5 V
SW1-SW3 -5 +25 V
All Other Inputs and Outputs -0.3 VCC + 0.3 V
Operating Junction Temperature, TJ 0 +125 °C
Storage Temperature -65 +150 °C
Lead Soldering Temperature (10 seconds) 300 °C
Lead Infrared Temperature (15 seconds) 260 °C
Thermal Resistance Junction-to-Case, (JC) 38 °C
Thermal Resistance Junction-to- Ambient, (JA) (Note 2) 90 °C/W
°C/W




Product Product status Eco Status Package type Leads Packing method Package Drawing Package Marking Convention**
FAN5182QSCX_NA3E229 Full Production RoHS Compliant QSOP 20 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 5182QSC Line 3: C
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN5182 is available. Click here for more information .





Description

The FAN5182 is a highly efficient multi-phase synchronous buck switching regulator controller optimized for converting a 12V main supply into a high-current low voltage supply for use in point-of-load (POL) applications. It uses a multi-loop PWM architecture to drive the logic-level outputs at a programmable switching frequency that can be optimized for regulator size and efficiency. The phase relationship of the output signals can be programmed to provide 1, 2, or 3-phase operation, allowing for construction of up to three complementary interleaved buck switching stages.

The FAN5182 also provides accurate and reliable over-current protection and adjustable current limiting.

FAN5182 is specified over the commercial temperature range of 0°C to +85°C and is available in a 20-lead QSOP package.
