FAN5067 Selling Leads, Price trend, FAN5067 DataSheet download, circuit diagram from SeekIC.com

Features: • Implements ACPI control with PWROK, SLP_S3 and SLP_S5 • Switch and linear regulator controller for 3.3V or 5V Dual• Linear regulator controller and linear regulator for VADJ Dual output adjustable from 2.5V to 3.5V• Break-before-Make• Drives all N-Channel ...

See larger image

SeekIC No. : 004340387 Detail

FAN5067: Features: • Implements ACPI control with PWROK, SLP_S3 and SLP_S5 • Switch and linear regulator controller for 3.3V or 5V Dual• Linear regulator controller and linear regulator for...

FAN5067 Data Sheet

Get Latest Price

Part Number:: FAN5067
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

FAN5009 evaluate
Features: • Drives N-channel High-Side and Low-Side MOSFETs in a synchronous buck conﬁ...
FAN5009M evaluate
Power Driver ICs ANG FG Dual Bootstrp 12V MOSFET Driver
FAN5009MPX evaluate
Power Driver ICs ANG FG Dual Bootstrp 12V MOSFET Driver

Product Details

Description

Features:

• Implements ACPI control with PWROK, SLP_S3 and SLP_S5
• Switch and linear regulator controller for 3.3V or 5V Dual
• Linear regulator controller and linear regulator for VADJ Dual output adjustable from 2.5V to 3.5V
• Break-before-Make
• Drives all N-Channel MOSFETs plus NPN
• Latched overcurrent protection for outputs
• Power-up softstarts for the linear regulators
• UVLO guarantees correct operation for all conditions
• 16 pin SOIC package

Application

• Willamette Platform ACPI Controller
• Northnwood Platform ACPI Controller

Pinout

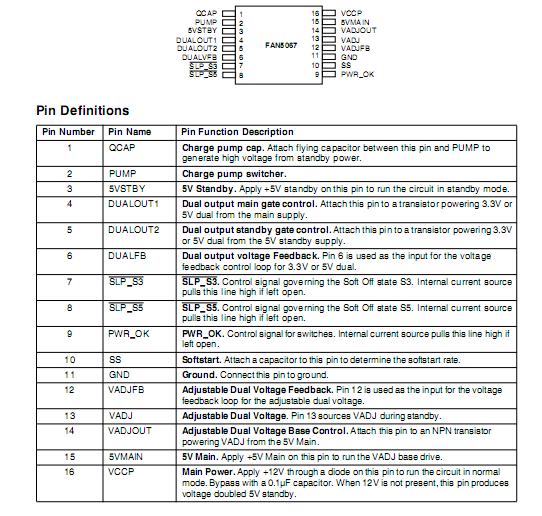

Connection Diagram

Specifications

Supply Voltages, VCCA	15V
Supply Voltages, VCCP	13.5V
Junction Temperature, TJ	150°C
Storage Temperature, TS	-65 to 150°C
Lead Soldering Temperature, 10 seconds	300°C
Thermal Resistance Junction to Ambient JA	85°C/W
Thermal Resistance Junction-to-case, JC	24°C/W

Description

The FAN5067 is an ACPI Switch Controller for Pentium IV Platforms. It is controlled by PWROK, SLP_S3 and SLP_S5 , and provides 3.3V or 5V Dual and VADJ Dual output for SDRAM or DDR with 200mA minimum base current for an external NPN transistor. An on-board precision low TC reference achieves tight tolerance voltage regulation without expensive external components. The FAN5067 also offers integrated Current Limiting that protects each output, and softstart for the linear regulators. The FAN5067 is available in a 16 pin SOIC.
