Features:

• Implements ACPI control with PWROK, SLP_S3 and SLP_S5
• Switch and linear regulator controller for 3.3V Dual (PCI)
• Linear regulator controller and linear regulator for VADJ Dual output adjustable from 2.5V to 3.5V
• Break-before-Make
• Drives all N-Channel MOSFETs plus NPN
• Latched overcurrent protection for outputs
• Power-up softstarts for the linear regulators
• UVLO guarantees correct operation for all conditions
• 16 pin SOIC package

Application

• Camino Platform ACPI Controller
• Whitney Platform ACPI Controller
• Tehama Platform ACPI Controller

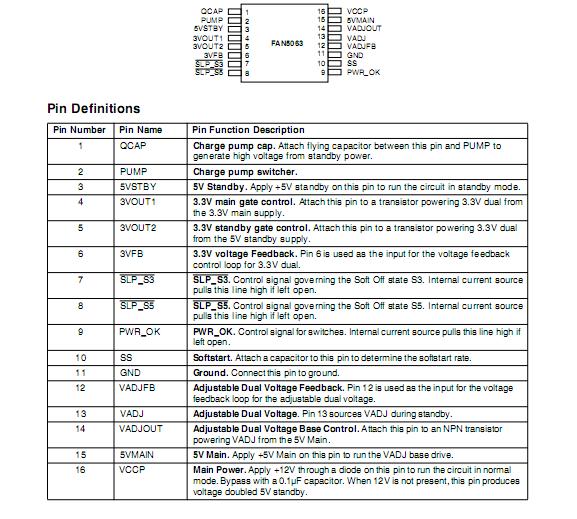

Pinout

Connection Diagram

Specifications

VCCP	15V
All Other Pins	13.5V
Junction Temperature, T_J	150°C
Storage Temperature	-65 to 150°C
Lead Soldering Temperature, 10 seconds	300°C
Thermal Resistance Junction to Ambient _JA	300°C
Thermal Resistance Junction-to-case, _JC	24°C/W

Description

The FAN5063 is an ACPI Switch Controller for the Camino, Whitney and Tehama Platforms. It is controlled by PWROK, SLP_S3 and SLP_S5
, and provides 3.3V Dual for PCI and VADJ Dual output for SDRAM or RAMBUS with 200mA minimum base current for an external NPN transistor. An on-board precision low TC reference achieves tight tolerance volt-age regulation without expensive external components. The FAN5063 also offers integrated Current Limiting that protects each output, and softstart for the linear regulators. The FAN5063 is available in a 16 pin SOIC.
