FAN5035

Features: • Programmable output from 1.3V to 3.5V using an integrated 5-bit DAC• Remote sense• 1MHz operation• 85% efficiency typical at full load• Integrated Power Good and Enable/Soft Start functions• Uncommitted Op-amp• Drives N-channel MOSFETs• O...

product image

FAN5035 Picture
See larger image
SeekIC No. : 004340381 Detail

FAN5035: Features: • Programmable output from 1.3V to 3.5V using an integrated 5-bit DAC• Remote sense• 1MHz operation• 85% efficiency typical at full load• Integrated Power Goo...

FAN5035 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN5035
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Programmable output from 1.3V to 3.5V using an integrated 5-bit DAC
• Remote sense
• 1MHz operation
• 85% efficiency typical at full load
• Integrated Power Good and Enable/Soft Start functions
• Uncommitted Op-amp
• Drives N-channel MOSFETs
• Over-current and over-voltage protection
• 24 pin TSSOP package


Application

• Power supply for Pentium® III
• VRM for Pentium III processor
• Programmable step-down power supply


Pinout

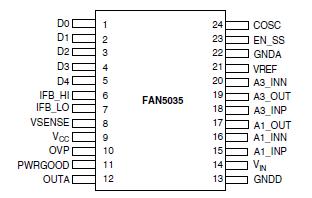

Connection Diagram


Specifications

Supply Voltage VCC .................. 13V
All Other Pins ......................VCC
Junction Temperature, TJ ............. 150°C
Storage Temperature .......... -65 to 150°C
Lead Soldering Temperature, 10 seconds ...300°C
Power Dissipation, PD.................. 950mW
Thermal Resistance Junction-to-case, JC ..16°C/W


Description

The FAN5035 is a voltage-mode DC-DC controller IC which provides a highly accurate, programmable output voltage for high-performance processors. The FAN5035 features remote voltage sensing, adjustable current limit and 1MHz operation. The FAN5035 uses a 5-bit D/A converter to program the output voltage from 1.3V to 3.5V. An on-board precision low TC reference achieves tight tolerance voltage regulation without expensive external components.

The FAN5035 also offers integrated functions including Power Good, Output Enable/Soft Start, current limiting, over-voltage protection, and an uncommitted op-amp, and is available in a 24 pin TSSOP package.
