FAN1951

Features: • 1.5A minimum guaranteed output current• 500mV maximum dropout at 1.5A Ideal for 2.5V to 1.8V or 1.65V conversion Ideal for 3.0V to 2.5V conversion• Current Limiting and Thermal shutdown• External Shut-down control (FAN1951 only)• Error flag output (FAN1951...

product image

FAN1951 Picture
See larger image
SeekIC No. : 004340313 Detail

FAN1951: Features: • 1.5A minimum guaranteed output current• 500mV maximum dropout at 1.5A Ideal for 2.5V to 1.8V or 1.65V conversion Ideal for 3.0V to 2.5V conversion• Current Limiting and...

FAN1951 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN1951
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1.5A minimum guaranteed output current
• 500mV maximum dropout at 1.5A
   Ideal for 2.5V to 1.8V or 1.65V conversion
   Ideal for 3.0V to 2.5V conversion
• Current Limiting and Thermal shutdown
• External Shut-down control (FAN1951 only)
• Error flag output (FAN1951 only)
• Fast transient response
• Low ground current


Application

• General purpose conversion for low-voltage CPUs, DSP and FPGAs
• SMPS post regulator
• Cable/Satellite set-top boxes
• PCI Graphics adapter cards


Pinout

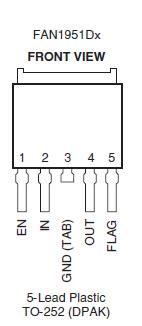

Connection Diagram


Specifications

Parameter Min. Typ. Max. Units
Supply Voltage: IN -0.2   15 V
Enable Voltage: EN -0.2   15 V
FLAG voltage: FLAG -0.2   15 V
Junction Temperature (TJ) 55   150 °C
Storage Temperature 65   150 v
Lead Soldering Temperature, 10 seconds     300 °C
Power Dissipation (PD)     Internally
Limited		 W



Description

The FAN1950 and FAN1951 are 1.5A low-dropout linear regulators that provide a low voltage, high current output with a minimum of external components. Both of these devices use a PNP output pass element achieving a maximum 500mV dropout at 1.5A load current. In addition these devices offer overcurrent limit and thermal shutdown features to ensure full protection.

The FAN1951 offers a logic level enable pin and an error flag output to indicate undervoltage and over-current conditions. 1.8V and 2.5V fixed output versions are available. 3.3V, 1.65V and 1.5V options are available upon request.
