FAN1950

Features: • 1.5A minimum guaranteed output current• 500mV maximum dropout at 1.5AIdeal for 2.5V to 1.8V or 1.65V conversionIdeal for 3.0V to 2.5V conversion• Current Limiting and Thermal shutdown• External Shut-down control (FAN1951 only)• Error flag output (FAN1951 o...

product image

FAN1950 Picture
See larger image
SeekIC No. : 004340312 Detail

FAN1950: Features: • 1.5A minimum guaranteed output current• 500mV maximum dropout at 1.5AIdeal for 2.5V to 1.8V or 1.65V conversionIdeal for 3.0V to 2.5V conversion• Current Limiting and T...

FAN1950 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN1950
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1.5A minimum guaranteed output current
• 500mV maximum dropout at 1.5A
Ideal for 2.5V to 1.8V or 1.65V conversion
Ideal for 3.0V to 2.5V conversion
• Current Limiting and Thermal shutdown
• External Shut-down control (FAN1951 only)
• Error flag output (FAN1951 only)
• Fast transient response
• Low ground current




Application

• General purpose conversion for low-voltage CPUs, DSP and FPGAs
• SMPS post regulator
• Cable/Satellite set-top boxes
• PCI Graphics adapter cards




Pinout

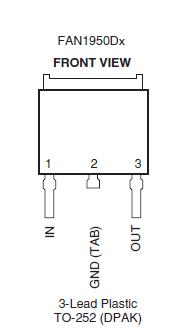

Connection Diagram




Specifications

Parameter Min. Typ. Max. Units
Supply Voltage: IN -0.2 15 V
Enable Voltage: EN -0.2 15 V
FLAG voltage: FLAG -0.2 15 V
Junction Temperature (TJ) 55 150 °C
Storage Temperature 65 150 v
Lead Soldering Temperature, 10 seconds 300 °C
Power Dissipation (PD) Internally
Limited		 W




Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FAN1950D25X Full Production RoHS Compliant $0.61 TO-252(DPAK) 3 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1950D25
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN1950 is available. Click here for more information .





Description

The FAN1950 and FAN1951 are 1.5A low-dropout linear regulators that provide a low voltage, high current output with a minimum of external components. Both of these devices use a PNP output pass element achieving a maximum 500mV dropout at 1.5A load current. In addition these devices offer overcurrent limit and thermal shutdown features to ensure full protection.

The FAN1951 offers a logic level enable pin and an error flag output to indicate undervoltage and over-current conditions. 1.8V and 2.5V fixed output versions are available. 3.3V, 1.65V and 1.5V options are available upon request.
