FAN1655

Features: •Sinks and sources 2.1A continuous, 3A peak•0 to +125°C operating temperature range•5mA Buffered VREFOUT = VDDQ/2•Load regulation: VTT = VREFOUT ± 40mV•On-chip thermal limiting•LowCost SO-14, Power-Enhanced eTSSOP or 8-pin 5x6mm MLP packages•Low-...

product image

FAN1655 Picture
See larger image
SeekIC No. : 004340310 Detail

FAN1655: Features: •Sinks and sources 2.1A continuous, 3A peak•0 to +125°C operating temperature range•5mA Buffered VREFOUT = VDDQ/2•Load regulation: VTT = VREFOUT ± 40mV•On-chi...

FAN1655 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN1655
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Sinks and sources 2.1A continuous, 3A peak
•0 to +125°C operating temperature range
•5mA Buffered VREFOUT = VDDQ/2
•Load regulation: VTT = VREFOUT ± 40mV
•On-chip thermal limiting
•LowCost SO-14, Power-Enhanced eTSSOP or 8-pin 5x6mm MLP packages
•Low-Current Shutdown Mode
•Output Short Circuit Protection






Application

•DDR Terminator VTT supply




Pinout

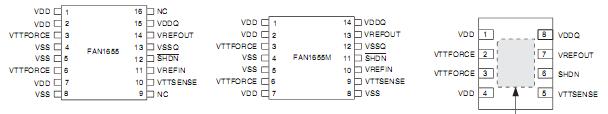

Connection Diagram




Specifications

Supply Voltage VDD, VDDQ 6V
Junction Temperature, TJ 150˚C
Storage Temperature -65 to 150˚C
Lead Soldering Temperature, 10 seconds 300˚C
Power Dissipation, PD FAN1655M (SOIC-14) 1.4W
FAN1655MTF (e-TSSOP)
FAN1655MP (MLP)		 See "Power Dissipation
and Derating"




Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FAN1655M Lifetime Buy RoHS Compliant N/A SOIC 14 RAIL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: FAN1655M
FAN1655MPX Full Production RoHS Compliant $0.86 MLP 8 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1655MP
FAN1655MTFX Full Production RoHS Compliant $0.86 eTSSOP 16 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1655MTF
FAN1655MX Full Production RoHS Compliant $0.86 SOIC 14 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: FAN1655M
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN1655 is available. Click here for more information .





Description

The FAN1655 is a low-cost bi-directional LDO specifically designed for terminating DDR memory bus. It can both sink and source up to 2.1A continuous, 3A peak, providing enough current for most DDR applications. Load regulation meets the JEDEC spec, VTT = VREFOUT ± 40mV.
The FAN1655 includes a buffered reference voltage capable of supplying up to 5mA current. On-chip thermal limiting provides protection against a combination of power overload and ambient temperature that would create an excessive junction temperature. A shutdown input puts the FAN1655 into a low power mode.
The FAN1655 regulator is available in a power-enhanced eTSSOP™-16, standard SOIC-14, and an 8-Lead MLP package.
