Features: • Sinks and sources 1A continuous, 1.5A peak• -40°C to +125°C Operating Range• Load regulation: (VDDQ/2) ± 40mV• 5mA VREF buffer tracks VTT• On-chip thermal limiting• Power-enhanced eTSSOP™-16 package• Low Current Shutdown Mode• Outpu...
FAN1654: Features: • Sinks and sources 1A continuous, 1.5A peak• -40°C to +125°C Operating Range• Load regulation: (VDDQ/2) ± 40mV• 5mA VREF buffer tracks VTT• On-chip thermal l...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Supply Voltage VDD, VDDQ | 6V |
Junction Temperature, TJ | 150°C |
Storage Temperature | -65 to 150°C |
Lead Soldering Temperature, 10 seconds | 300°C |
Power Dissipation, PD | 1.4W |
The FAN1654 is a low-cost bi-directional LDO specificall designed for terminating DDR memory bus. It can both sink and source up to 1A continuous, 1.5A peak, providing enough current for most DDR applications. Load regulation meets the JEDEC spec, VTT = (VDDQ/2) ± 40mV.
The FAN1654 includes a buffered reference voltage capable of supplying up to 5mA current. On-chip thermal limiting provides protection against a combination of power overload and ambient temperature that would create an excessive junction temperature. A shutdown input puts the FAN1654 into a low power mode for laptop computer applications.

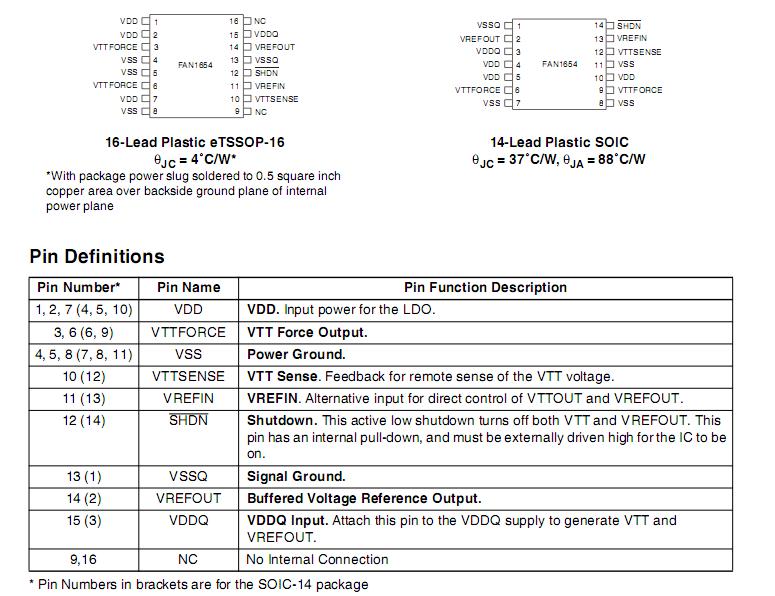

The FAN1654 regulator is available in a power-enhancedeTSSOP™-16 package, and the standard SOIC-14
