Features: •Low dropout voltage•Load regulation: 0.05% typical•Current limit•On-chip thermal limiting•Standard SOT-223 and TO-252 packages•Three-terminal adjustable or ﬁxed 1.8V, 2.5V, 3.3V or 5V•Speciﬁed from -40 to +125Application•USB ...

See larger image

SeekIC No. : 004340308 Detail

FAN1616A: Features: •Low dropout voltage•Load regulation: 0.05% typical•Current limit•On-chip thermal limiting•Standard SOT-223 and TO-252 packages•Three-terminal adjustabl...

FAN1616A Data Sheet

Get Latest Price

Part Number:: FAN1616A
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

•Low dropout voltage
•Load regulation: 0.05% typical
•Current limit
•On-chip thermal limiting
•Standard SOT-223 and TO-252 packages
•Three-terminal adjustable or ﬁxed 1.8V, 2.5V, 3.3V or 5V
•Speciﬁed from -40 to +125

Application

•USB Controlled Power Supply
•High efﬁciency linear regulators for Mixed Voltage Logic, ASIC, FPGA based systems
•Post regulators for switching supplies
•Battery chargers
•12V to 5V, 3.3V, 2.5V, 1.8V, or adj linear regulators
•Motherboard clock supplies
•SDRAM Module supplies

Pinout

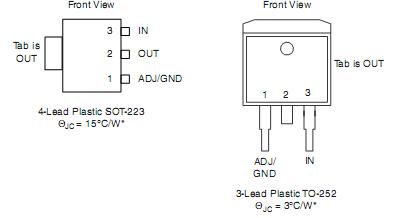

Connection Diagram

Specifications

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FAN1616AD18X	Full Production	RoHS Compliant	$0.443	TO-252(DPAK)	3	TAPE REEL	TD3A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1616AD18
FAN1616AD33X	Full Production	RoHS Compliant	$0.443	TO-252(DPAK)	3	TAPE REEL	TD3A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1616AD33
FAN1616ADX	Full Production	RoHS Compliant	$0.443	TO-252(DPAK)	3	TAPE REEL	TD3A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1616AD
FAN1616AS18X	Full Production	RoHS Compliant	$0.443	SOT-223	4	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1616AS18
FAN1616AS25X	Full Production	RoHS Compliant	$0.443	SOT-223	4	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1616AS25
FAN1616AS33X	Full Production	RoHS Compliant	$0.443	SOT-223	4	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1616AS33
FAN1616AS5X	Full Production	RoHS Compliant	$0.443	SOT-223	4	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1616AS5
FAN1616ASX	Full Production	RoHS Compliant	$0.443	SOT-223	4	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1616AS

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN1616A is available. Click here for more information .

Parameter	Min.	Max.	Unit
V_IN		18	V
(V_INV_OUT) ^* I_OUT		See Figure 1
Operating Junction Temperature Range	-40	125
Storage Temperature Range	-65	150
Lead Temperature (Soldering, 10 sec.)		300

Description

The FAN1616A and FAN1616A-1.8 ,-2.5, -3.3 and -5 are lowdropout three-terminal regulators with 0.5A output currentcapability. These devices have been optimized for applicationswhere transient response and minimum dropout voltageare critical. The 5V version is designed also to be used inUSB Hub and Motherboard applications.

On-chip thermal limiting provides protection against anycombination of overload and ambient temperature thatwould create excessive junction temperatures.

Unlike PNP type regulators where up to 10% of the outputcurrent is wasted as quiescent current, the bias current of theFAN1616A flows into the load, increasing efficiency.

The FAN1616A series regulators are available in the industry-standard SOT-223 and TO-252 power packages.
