FAN1587A Selling Leads, Price trend, FAN1587A DataSheet download, circuit diagram from SeekIC.com

Features: • Fast transient response• Low dropout voltage at up to 3A• Load regulation: 0.05% typical• Trimmed current limit• On-chip thermal limiting• Standard TO-220, TO-263, TO-263 center cut, and TO-252 packagesApplication• Pentium® Class GTL+ bus s...

See larger image

SeekIC No. : 004340306 Detail

FAN1587A: Features: • Fast transient response• Low dropout voltage at up to 3A• Load regulation: 0.05% typical• Trimmed current limit• On-chip thermal limiting• Standard TO...

FAN1587A Data Sheet

Get Latest Price

Part Number:: FAN1587A
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Description

Features:

• Fast transient response
• Low dropout voltage at up to 3A
• Load regulation: 0.05% typical
• Trimmed current limit
• On-chip thermal limiting
• Standard TO-220, TO-263, TO-263 center cut, and TO-252 packages

Application

• Pentium^®Class GTL+ bus supply
• Low voltage logic supply
• Post regulator for switching supply
• 12V to 5V linear regulator
• 3.3V to 1.5V linear regulator

Pinout

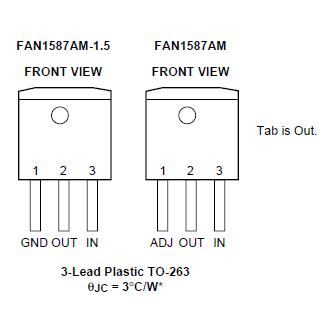

Connection Diagram

Specifications

Parameter	Min	Max	Unit
V_IN		18	V
(V_IN V_OUT)^* IOUT		S_ee Figure 1
Operating Junction Temperature Range	0	125	°C
Storage Temperature Range	-65	150	°C
Lead Temperature (Soldering, 10 sec.)		300	°C

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FAN1587AD15X	Full Production	RoHS Compliant	$1.27	TO-252(DPAK)	3	TAPE REEL	TD3A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1587AD15
FAN1587AD33X	Full Production	RoHS Compliant	$1.27	TO-252(DPAK)	3	TAPE REEL	TD3A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1587AD33
FAN1587ADX	Full Production	RoHS Compliant	$1.27	TO-252(DPAK)	3	TAPE REEL	TD3A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1587AD
FAN1587AM15X	Full Production	RoHS Compliant	$1.27	TO-263(D2PAK)	3	TAPE REEL	TS3A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1587AM15
FAN1587AM33X	Full Production	RoHS Compliant	$1.27	TO-263(D2PAK)	3	TAPE REEL	TS3A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1587AM33
FAN1587AMC33X	Full Production	RoHS Compliant	$1.27	TO-263(D2PAK)	2	TAPE REEL	TS2A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1587AMC33
FAN1587AMCX	Full Production	RoHS Compliant	$1.27	TO-263(D2PAK)	2	TAPE REEL	TS3A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1587AMC
FAN1587AMX	Full Production	RoHS Compliant	$1.27	TO-263(D2PAK)	3	TAPE REEL	TS3A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1587AM
FAN1587AT	Full Production	RoHS Compliant	$1.27	TO-220AB	3	RAIL	TA03A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1587AT
FAN1587AT15	Full Production	RoHS Compliant	$1.27	TO-220AB	3	RAIL	TA03A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1587AT15
FAN1587AT33	Full Production	RoHS Compliant	$1.27	TO-220AB	3	RAIL	TA03A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1587AT33

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN1587A is available. Click here for more information .

Description

The FAN1587A, FAN1587A-1.5, and FAN1587A-3.3 are low dropout three-terminal regulators with 3A output current capability. These devices have been optimized for low voltage applications including V_TT bus termination, where transient response and minimum input voltage are critical. The FAN1587A is ideal for low voltage microprocessor applications requiring a regulated output from 1.5V to 3.6V with an input supply of 12V or less. The FAN1587A-1.5 offers fixed 1.5V with 3A current capability for GTL+ bus V_TTtermination. The FAN1587A-3.3 offers fixed 3.3V current capability for logic IC operation.

Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload and ambient temperature that would create excessive junction temperatures.

The FAN1587A, FAN1587A-1.5, and FAN1587A-3.3 are available in the industry-standard TO-220, TO-263, TO-263 center cut, and TO-252 (DPAK) power packages.
