Product Details

Description

Features:

• Two independent outputs
• Load regulation: 0.05% typical
• Under-voltage lockout and softstart
• Over Temperature protection
• T0-252 DPAK, 5-lead SPAK packages
• Fixed 3.3V and adjustable or ﬁxed 2.5V output

Application

• Hard Disk Drives, CD-Roms
• Set-top Boxes
• ADSL line cards
• Motherboards with multiple supplies

Pinout

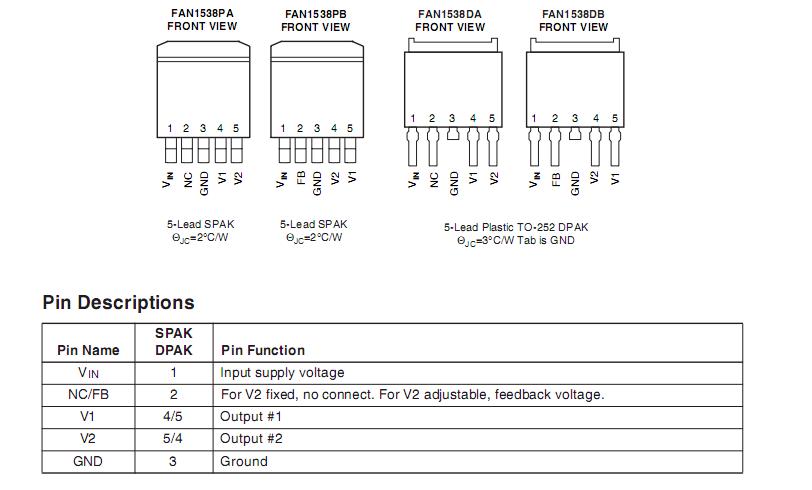

Connection Diagram

Specifications

Parameter	Min.	Max.	Unit
VIN		10	V
Storage Temperature Range	-65	150	°C
Lead Temperature (Soldering, 10 sec.)		300	°C

Description

The FAN1538 provides two output voltages: a ﬁxed 3.3V ouput and either a ﬁxed 2.5V or adjustable output with 1A output current capability. Refer to Ordering Information for details.

Current limit protects against short circuit currents and on chip over temperature circuitry limits the maximum die tem- perature.

Under voltage lockout and softstart circuitry protects against unregulated output voltages when the input voltage is below speciﬁcation.
