F6600

Features: ` Flyback Operation with Quasi-Resonant Soft Switching or Low Power Dissipation and EMI` Rugged Avalanche-Rated MOSFET` Choice of MOSFET Voltage and rDS(on)` Full Over-Current Protection (no blanking)` Under-Voltage Lockout with Hysteresis` Over-Voltage Protection` Direct Voltage Feedbac...

product image

F6600 Picture
See larger image
SeekIC No. : 004340125 Detail

F6600: Features: ` Flyback Operation with Quasi-Resonant Soft Switching or Low Power Dissipation and EMI` Rugged Avalanche-Rated MOSFET` Choice of MOSFET Voltage and rDS(on)` Full Over-Current Protection (...

F6600 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
F6600
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Flyback Operation with Quasi-Resonant Soft Switching or Low Power Dissipation and EMI
`  Rugged Avalanche-Rated MOSFET
` Choice of MOSFET Voltage and rDS(on)
`  Full Over-Current Protection (no blanking)
`  Under-Voltage Lockout with Hysteresis
`  Over-Voltage Protection
` Direct Voltage Feedback
`  Low Start-up Current (<400 A)
`  Low-Frequency, Low-Power Standby Operation
`  Overmolded 5-Pin Package


Pinout

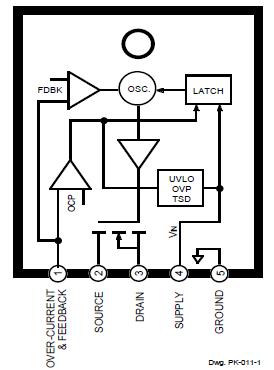

Connection Diagram


Specifications

Control Supply Voltage, VIN . . .. . . .. . 35 V
Drain-Source Voltage, VDS
Series STR-F6620 . . . . . . . . .. . . . . . 450 V
Series STR-F6630 . . . . . . . . . . . .. . . 500 V
Series STR-F6650 . . . . . . . . . . . .. . . 650 V
Series STR-F6670 . . . . . . . . . . . . .. . 900 V
Drain Switching Current, ID . .. . See Table
Peak Drain Current, IDM . . . . . . See Table
Avalanche Energy, EAS . . . . .. .  See Table
OCP/FB Voltage Range,
VOCP . . . . . . . . . . . . . . . . . -0.3 V to +6 V
Package Power Dissipation, PD
control (VIN x IIN(ON)) . . . . . . . . . 0.8 W
total . . . . . . . . . . . . . . . . . . . See Graph
FET Channel Temperature, TJ . .. +150
Internal Frame Temperature, TF . +125
Operating Temperature Range,
TA . . . . . . . . . . . . . ... . . -20 to +125
Storage Temperature Range,
TS . . . . . . . . . . . . . . . . . -40 to +125


Description

The Series STR-F6600 is specifically designed to satisfy the requirementsfor increased integration and reliability in off-line quasi-resonantflyback converters. The series incorporates a primary control and drivecircuit with discrete avalanche-rated power MOSFETs.

Covering the power range from below 25 watts up to 300 watts for100/115/230 VAC inputs, and up to 150 watts for 85 to 265 VACuniversal input, these devices STR-F6600 can be used in a range of applications,from battery chargers and set top boxes, to televisions, monitors, andindustrial power supply units.

STR-F6600 Cycle-by-cycle current limiting, under-voltage lockout with hysteresis,over-voltage protection, and thermal shutdown protects the powersupply during the normal overload and fault conditions. Over-voltageprotection and thermal shutdown are latched after a short delay. Thelatch may be reset by cycling the input supply. Low-current startup anda low-power standby mode selected from the secondary circuit completesa comprehensive suite of features. The series is provided in a five-pinovermolded TO-3P style package, affording dielectric isolation withoutcompromising thermal characteristics.
