F5CP

Features: • Ultra compact and light package (2.5 mm ´ 2.0 mm ´ 0.9 mm (h) *) *: 1.0 mm height maximum• Excellent stop band attenuation• External matching are not required (50 W I/O)• Standard devices are available for mobile communication standardsPinoutSpecific...

product image

F5CP Picture
See larger image
SeekIC No. : 004340099 Detail

F5CP: Features: • Ultra compact and light package (2.5 mm ´ 2.0 mm ´ 0.9 mm (h) *) *: 1.0 mm height maximum• Excellent stop band attenuation• External matching are not requir...

F5CP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
F5CP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Ultra compact and light package (2.5 mm ´ 2.0 mm ´ 0.9 mm (h) *)
  *: 1.0 mm height maximum
• Excellent stop band attenuation
• External matching are not required (50 W I/O)
• Standard devices are available for mobile communication standards


Pinout

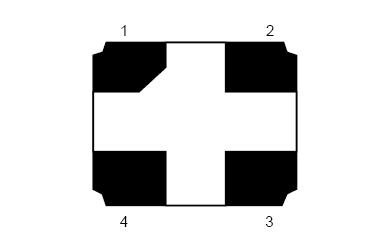

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Min. Max.
Ambient operating temperature Ta -30 +85 °C
Storage temperature Tstg -40 +100 °C
Input power F5CP Series Pin - +15 dBm
F6CP Series - +10
Input DC voltage - -5 +5 V
WARNING: Piezoelectric devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The F5CP/F6CP series of SAW band pass filters have 2.5 mm ´ 2.0 mm ´ 0.9 mm (h) of ultra small package, which are available in the 700 to 2000 MHz frequency range. They exhibit high stability by using single crystal, Lithium Tantalate (LiTaO3) with a large electro-mechanical coefficient.

Typical applications for the F5CP/F6CP series include RF interstage filtering in mobile communications systems. Standard devices are available for AMPS, GSM, EGSM, PDC800, PDC1.5G.
