F502L

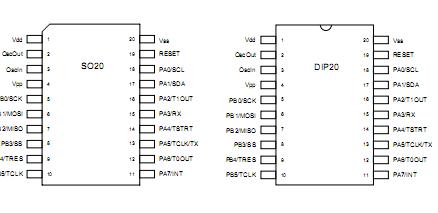

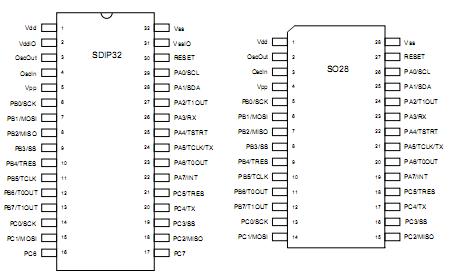

· Up to 8 Inputs with 8-bit resolution;
· 1 Kbyte of Program/Data Memory available to store more than 300 to Membership Functions (Mbfs) for each Input;
· Up to 128 Outputs with 8-bit resolution;
· Possibility of processing fuzzy rules with an UNLIMITED number of antecedents;
· UNLIMITED number of Rules and Fuzzy Blocks.The limits on the number of Fuzzy Rules and uzzy program blocks are only related to the Program/Data Memory size.

ST52F501L/F502L are devices of ST FIVE family of 8-bit Intelligent Controller Units (ICU), which can perform, both boolean and Fuzzy algorithms in an efficient manner, in order to reach the best performances that the two methodologies allow.

Produced by STMicroelectronics using the reliablehigh performance low power/low voltage CMOS process for Single Voltage Flash versions, ST52F501L/F502L include integrated on-chip peripherals that allow maximization of system reliability, and decreased system costs in order to minimize the number of external components, in particular it is suitable for portable applications.

The flexible I/O configuration of ST52F501L/F502L allow one to interface with a wide range of external devices (for example D/A converters or power control devices), and to communicate with the most common serial standards.

ST52F501L/F502L pins are configurable. The user can set input or output signals on each single pin in 8 different modes, reducing the need for external components in order to supply a suitable interface with the port pins.

A hardware multiplier and divider, together with a wide instruction set, allow the implementation of complex functions by using a single instruction. Therefore, program memory utilization and computational speed is optimized.

Fuzzy Logic dedicated structures in ST52F501L/F502L ICU's can be exploited to model complex system with high accuracy in a useful and simple manner.

Fuzzy Expert Systems for overall system management and Fuzzy Real time Controls can be designed to increase performance at competitive costs.

The linguistic approach characterizing Fuzzy Logic is based on a set of IF-THEN rules, which describe the control behavior and on Membership Functions associated with input and output variables.

Up to 340 Membership Functions, with triangular and trapezoidal shapes, or singleton values are available to describe fuzzy variables.

The Timer/PWM peripheral allows one to manage power devices and timing signals, by implementing different operating modes and high frequency PWM (Pulse Width Modulation) controls. Input Capture and Output Compare functions are available on the Timers.

The Timer has a 16-bit programmable internal Prescaler and a 8-bit Counter, which can use internal or external START/STOP signals and clock.

In addition to the features described previously, a second PWM/Timer includes an IR Driver that can directly support a wide set of codification types for remote control signals.

The outputs of the two Timers/PWM can also be easily combined in AND, OR, XOR and NOT to generate complex digital waveforms.

An internal programmable WATCHDOG is available to avoid loop errors and reset the ICU.

ST52F501L/F502L supply different peripherals to implement the most common serial communication protocols. I²C, SPI and SCI peripherals allow the implementation of synchronous and asynchronous serial protocols.I²C peripherals can work both in master and slave mode. SPI implements Single and Multi Master modes using 3-wire. SCI implements the standard UART protocols.

Up to 10 interrupt vectors are available, which allow synchronization with peripherals and external devices. Non-Maskable Interrupt and S/W TRAP are available. All interrupts have configurable priority levels and are maskable excluding the Non-Maskable Interrupt, which has fixed top level priority. Two versatile Port Interrupts are available for synchronization with external sources.

The ST52F501L/F502L also include an on-chip Power-on-Reset (POR), which provides an internal chip reset during power up situation and a Programmable Low Voltage Detector (PLVD), which causes the ICU to send an interrupt request or a reset if the voltage source VDD dips below a threshold. Three programmable thresholds are available to work with different supply voltages. The Power Down Reset (PDR) provides a reset of the device if the voltage source VDD dips below the safe supply voltage level (around 1.8 V) even in Halt mode.

In order to optimize energy consumption, two different power saving modes are available: Wait mode and Halt mode.

The Programmable Halt mode Wake-up (PHW) allows the CPU to wake-up from Halt mode at user programmed times, either servicing a dedicated interrupt routine or resetting the device. The PHW is driven by a dedicated 32 KHz low consumption internal oscillator.

Internal Oscillator with programmable frequency (1.25 to 10 MHz ± 1%) is available. External clock,quartz oscillator or RC oscillator are also applicable. The device always starts with the Internal Oscillator, then it reads an Option Byte where the clock mode to be used is programmed.Program Memory addressing capability addresses up to 8 Kbytes of memory location to store both program instructions and data.
