Features:

Glass passivated chip
High case dielectric strength
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Fast switching for high efficiency
Ideal for printed circuit board

Pinout

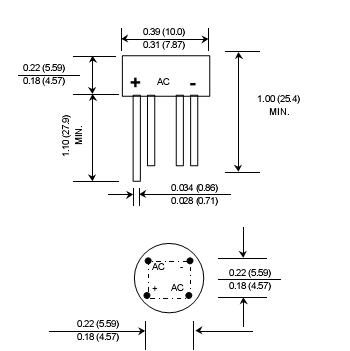

Connection Diagram

Specifications

RATING	SYMBOL	F2W 005G	F2W 01G	F2W 02G	F2W 04G	F2W 06G	F2W 08G	F2W 10G	UNIT
Maximum Recurrent Peak Reverse Voltage	VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS Voltage	VRMS	35	70	140	280	420	560	700	Volts
Maximum DC Blocking Voltage	VDC	50	100	200	400	600	800	1000	Volts
Maximum Average Forward Current 0.375" (9.5 mm) lead length Tc = 50C	IF(AV)	2.0							Amps.
Peak Forward Surge Current Single half sine wave Superimposed on rated load (JEDEC Method)	IFSM	30							Amps.
Rating for fusing ( t < 8.3 ms. )	I² t	10							A²S
Maximum Forward Voltage per Diode at IF = 1.0 Amp.	VF	1.3							Volts
Maximum DC Reverse Current Ta = 25 C at Rated DC Blocking Voltage Ta = 100 C	IR	10							mA
	IR(H)	1.0							mA
Maximum Reverse Recovery Time (Note 1)	Trr	150					250	500	ns
Typical Junction Capacitance per Diode (Note 2)	CJ	24							pf
Typical Thermal Resistance (Note 3)	RqJA	36							°C/W
Operating Junction Temperature Range	TJ	- 50 to + 150							°C
Storage Temperature Range	TSTG	- 50 to + 150							°C
