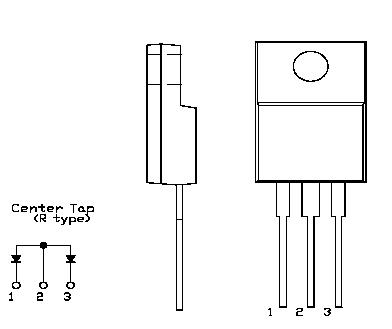

Features: `Fully Molded Isolation`Dual Diodes Anode Common`Ultra Fast Recovery`Low Forward Voltage Drop`High Surge Capability`200 Volts thru 600 Volts Types AvailablePinoutSpecifications Rating Symbol F10P20FR Unit Repetitive Peak Reverse Voltage VRRM 200 V Non-repetitive Peak...
F10P20FR: Features: `Fully Molded Isolation`Dual Diodes Anode Common`Ultra Fast Recovery`Low Forward Voltage Drop`High Surge Capability`200 Volts thru 600 Volts Types AvailablePinoutSpecifications Ra...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Rating | Symbol | F10P20FR | Unit | ||
Repetitive Peak Reverse Voltage | VRRM | 200 | V | ||
Non-repetitive Peak Reverse Voltage | VRSM | 220 | V | ||
Average Rectified Output Current | IO | 10 | Tc=117°C | 50 Hz,Full Sine Wave Resistive Load |
A |
RMS Forward Current | IF(RMS) | 11.1 | A | ||
Surge Forward Current | IFSM | 80 | 50 Hz Full Sine Wave,1cycle Non-repetitive |
A | |
Operating JunctionTemperature Range | Tjw | - 40 to + 150 | °C | ||
Storage Temperature Range | Tstg | - 40 to + 150 | °C | ||
Mounting torque | 0.5 | Recommended value | N•m |
