EZ1587I

Features: ·Low dropout voltage: 1.3V max. for EZ1587C and 1.4V max. for EZ1587I·Full current rating over line and temperature·Fast transient response·±2% total output regulation over line, load and temperature·Adjust pin current max 90µA over temperature·Fixed/adjustable output voltage (EZ15...

product image

EZ1587I Picture
See larger image
SeekIC No. : 004339618 Detail

EZ1587I: Features: ·Low dropout voltage: 1.3V max. for EZ1587C and 1.4V max. for EZ1587I·Full current rating over line and temperature·Fast transient response·±2% total output regulation over line, load and ...

EZ1587I Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EZ1587I
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Low dropout voltage: 1.3V max. for EZ1587C and 1.4V max. for EZ1587I
·Full current rating over line and temperature
·Fast transient response
·±2% total output regulation over line, load and temperature
·Adjust pin current max 90µA over temperature
·Fixed/adjustable output voltage (EZ1587C)
·Line regulation typically 0.015%
·Load regulation typically 0.05%
·Industrial temperature range (EZ1587I)
·TO-220 and TO-263 packages. Available in RoHS compliant package


Application

·Printer and plotter supplies
·Instrumentation
·Medical equipment
·Microcontroller systems
·Telecommunication systems
·Motherboards
·Switching supply post regulation

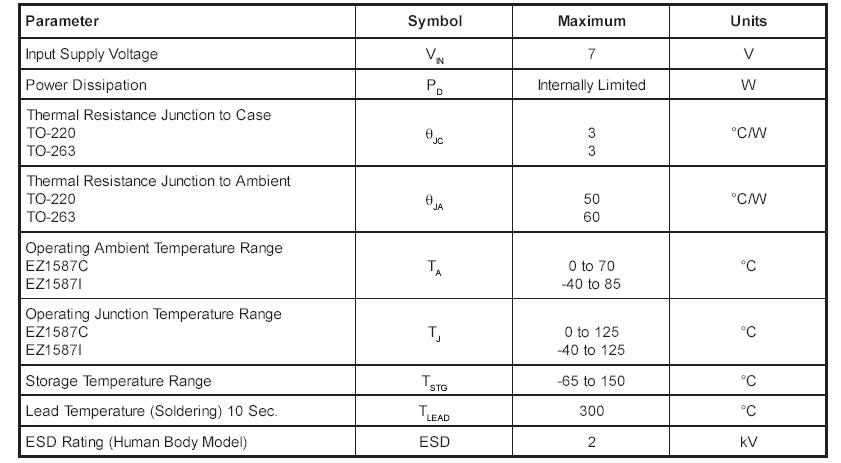

Specifications

Connection Diagram


Description

The EZ1587 series of high performance positive voltage regulators are designed for use in applications requiring low dropout performance at up to 3A. Additionally, the EZ1587 series provides excellent regulation over variations in line, load and temperature. Outstanding features include low dropout performance at rated current, fast transient response, internal current limiting and thermal shutdown protection of the output device.

A variety of options are available for maximum flexibility: the EZ1587C is intended for commercial applications and has both fixed and adjustable voltage options; the EZ1587I is intended for industrial applications and is adjustable only.

All devices EZ1587 are available in the popular TO-220 and TO-263 packages.
