EVU-E3AF25D53

POT 5K OHM 9MM HORZ NO BUSHING

product image

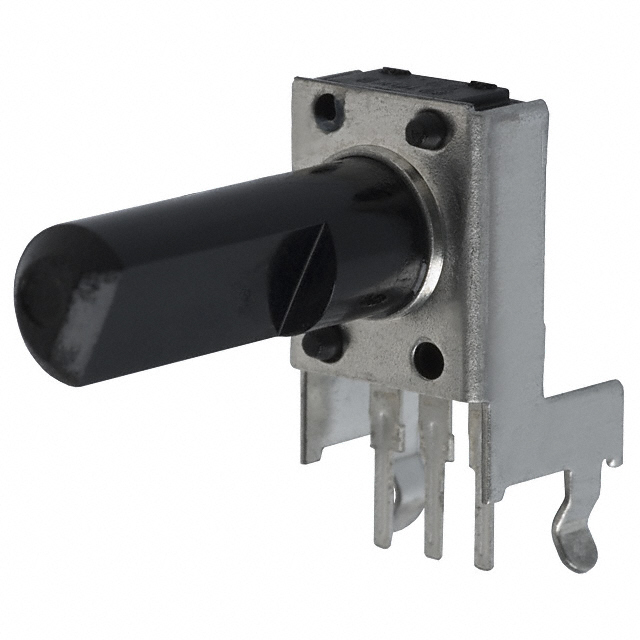

EVU-E3AF25D53 Picture
See larger image
SeekIC No. : 003620106 Detail

EVU-E3AF25D53: POT 5K OHM 9MM HORZ NO BUSHING

EVU-E3AF25D53 Data Sheet

floor Price/Ceiling Price

US $ .22~.63 / Piece | Get Latest Price
Part Number:
EVU-E3AF25D53
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~50
  • 50~100
  • 100~250
  • 250~500
  • 500~1000
  • 1000~5000
  • 5000~10000
  • 10000~25000
  • Unit Price
  • $.63
  • $.47
  • $.41
  • $.36
  • $.29
  • $.24
  • $.23
  • $.23
  • $.22
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: EVU Manufacturer: Panasonic Electronic Components
Operating Supply Voltage : 1.8 V to 5.5 V Resistance (Ohms): 5k
Power (Watts): 0.05W, 1/20W Tolerance: ±20%
Temperature Coefficient: - Number of Turns: Single
Rotation: 300° Adjustment Type: Side Adjustment
Resistive Material: - Termination Style: PCB Pins, Board Locks
Actuator Length: 0.717" (18.20mm) Actuator Type: Flatted Shaft
Actuator Diameter: 0.236" (6.00mm) Size - Body: Square - 0.610" L x 0.374" W x 0.268" H (15.50mm x 9.50mm x 6.80mm)
Mounting Type: Through Hole, Snap In

Description

Series: EVU
Manufacturer: Panasonic Electronic Components
Power (Watts): 0.05W, 1/20W
Tolerance: ±20%
Temperature Coefficient: -
Number of Turns: Single
Rotation: 300°
Resistive Material: -
Termination Style: PCB Pins, Board Locks
Actuator Type: Flatted Shaft
Actuator Diameter: 0.236" (6.00mm)
Mounting Type: Through Hole, Snap In
Packaging: Bulk
Adjustment Type: Side Adjustment
Actuator Length: 0.717" (18.20mm)
Size - Body: Square - 0.610" L x 0.374" W x 0.268" H (15.50mm x 9.50mm x 6.80mm)
Resistance (Ohms): 5k


Parameters:

Technical/Catalog InformationEVU-E3AF25D53
VendorPanasonic - ECG
CategoryPotentiometers, Variable Resistors
Resistance In Ohms5.00K
Power (Watts)0.05W, 1/20W
Number of TurnsSingle
Adjustment TypeSide Adjustment
Tolerance±20%
Package / CaseSquare - 0.610" L x 0.374" W x 0.268" H (15.50mm x 9.50mm x 6.80mm)
Termination StyleThrough Hole
Actuator Diameter6.00mm
Actuator Length18.20mm
Actuator TypeFlatted Shaft
Temperature Coefficient-
Resistive Material-
PackagingBulk
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names EVU E3AF25D53
EVUE3AF25D53
P3N4502 ND
P3N4502ND
P3N4502
