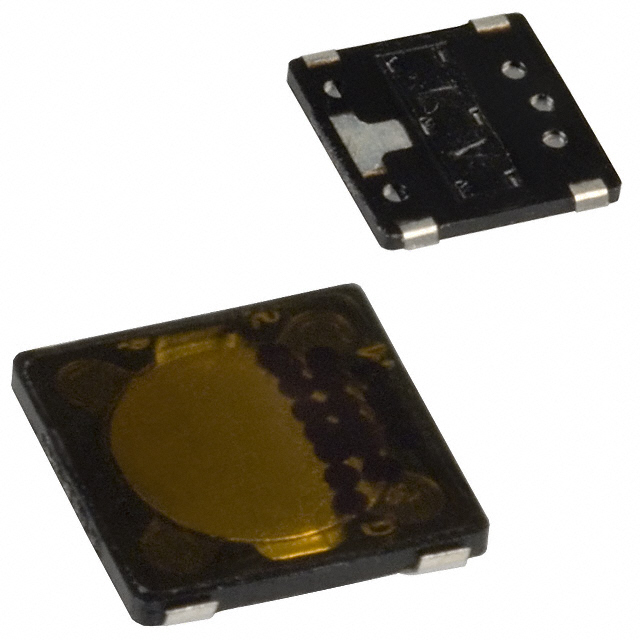

See larger image

SeekIC No. : 004172611 Detail

EVQ-P6EB35: SWITCH TACTILE SPST-NO 0.02A 15V

EVQ-P6EB35 Data Sheet

Get Latest Price

Part Number:: EVQ-P6EB35
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

EVQ-11A04M evaluate
US $.06 - .06 / Piece

Tactile & Jog Switches Light Touch Switch Round Type
EVQ-11A05R evaluate
US $.06 - .06 / Piece

Tactile & Jog Switches Light Touch Switch Round Type
EVQ-11A07K evaluate
US $.06 - .06 / Piece

Tactile & Jog Switches Light Touch Switch Round Type

Product Details

Quick Details

Series:	EVQP6	Operating Supply Voltage :	3 V
Manufacturer:	Panasonic Electronic Components	Circuit:	SPST-NO
Switch Function:	Off-Mom	Contact Rating @ Voltage:	0.02A @ 15VDC
Actuator Type:	Standard	Mounting Type:	Surface Mount
Actuator Height off PCB, from Pins:	0.35mm	Actuator Orientation:	Top Actuated
Termination Style:	SMD (SMT) Tab	Outline:	4.10mm x 4.10mm
Illumination:	Non-Illuminated	Illumination Voltage (Nominal):	-
Illumination Type, Color:	-	Operating Force:	160gf
Ingress Protection:	Dust Proof	Features:	-

Description

Manufacturer: Panasonic Electronic Components
Circuit: SPST-NO
Switch Function: Off-Mom
Contact Rating @ Voltage: 0.02A @ 15VDC
Actuator Type: Standard
Actuator Orientation: Top Actuated
Illumination: Non-Illuminated
Illumination Voltage (Nominal): -
Illumination Type, Color: -
Features: -
Operating Force: 160gf
Mounting Type: Surface Mount
Termination Style: SMD (SMT) Tab
Series: EVQP6
Actuator Height off PCB, from Pins: 0.35mm
Outline: 4.10mm x 4.10mm
Ingress Protection: Dust Proof
Packaging: Tape & Reel (TR)

Parameters:

Technical/Catalog Information	EVQ-P6EB35
Vendor	Panasonic - ECG (VA)
Category	Switches
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.02A @ 15VDC
Mounting Type	Surface Mount
Operating Force	160gf
Orientation	Vertical
Outline	4.10mm x 4.10mm
Switch Function	Off-Mom
Illumination	Non-Illuminated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EVQ P6EB35 EVQP6EB35 P12324SDKR ND P12324SDKRND P12324SDKR
