EVJ-Y81F30B53

POT 5K OHM 12MM VERT NO BUSHING

product image

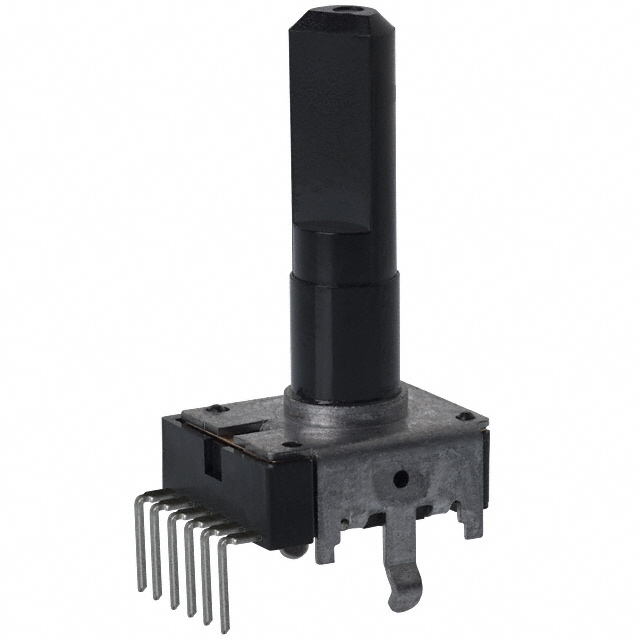

EVJ-Y81F30B53 Picture
SeekIC No. : 003619952 Detail

EVJ-Y81F30B53: POT 5K OHM 12MM VERT NO BUSHING

floor Price/Ceiling Price

US $ .47~1.22 / Piece | Get Latest Price
Part Number:
EVJ-Y81F30B53
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~50
  • 50~100
  • 100~250
  • 250~500
  • 500~1000
  • 1000~5000
  • 5000~10000
  • 10000~25000
  • Unit Price
  • $1.22
  • $.94
  • $.83
  • $.71
  • $.59
  • $.51
  • $.5
  • $.48
  • $.47
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: EVJ Manufacturer: Panasonic Electronic Components
Resistance (Ohms): 5k Power (Watts): 0.05W, 1/20W
Tolerance: ±20% Temperature Coefficient: -
Settling Time : 16 us (Typ) Number of Turns: Single
Rotation: 300° Adjustment Type: Top Adjustment
Resistive Material: - Termination Style: PCB Pins, Board Locks
Actuator Length: 0.917" (23.30mm) Actuator Type: Flatted Shaft
Actuator Diameter: 0.236" (6.00mm) Size - Body: Square - 0.205" L x 0.512" W x 0.610" H (5.20mm x 13.00mm x 15.50mm)
Mounting Type: Through Hole, Snap In

Description

Series: EVJ
Manufacturer: Panasonic Electronic Components
Resistance (Ohms): 5k
Power (Watts): 0.05W, 1/20W
Tolerance: ±20%
Temperature Coefficient: -
Number of Turns: Single
Rotation: 300°
Resistive Material: -
Termination Style: PCB Pins, Board Locks
Actuator Type: Flatted Shaft
Actuator Diameter: 0.236" (6.00mm)
Mounting Type: Through Hole, Snap In
Packaging: Bulk
Adjustment Type: Top Adjustment
Size - Body: Square - 0.205" L x 0.512" W x 0.610" H (5.20mm x 13.00mm x 15.50mm)
Actuator Length: 0.917" (23.30mm)


Parameters:

Technical/Catalog InformationEVJ-Y81F30B53
VendorPanasonic - ECG
CategoryPotentiometers, Variable Resistors
Resistance In Ohms5.00K
Power (Watts)0.05W, 1/20W
Number of TurnsSingle
Adjustment TypeTop Adjustment
Tolerance±20%
Package / CaseSquare - 0.610" L x 0.512" W x 0.205" H (15.50mm x 13.00mm x 5.20mm)
Termination StyleThrough Hole
Actuator Diameter6.00mm
Actuator Length23.30mm
Actuator TypeFlatted Shaft
Temperature Coefficient-
Resistive Material-
PackagingBulk
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names EVJ Y81F30B53
EVJY81F30B53
P2A5502 ND
P2A5502ND
P2A5502
